Heritage Classic™ C-Series
Timeless, Secure and Functional Residential Garage Doors
Westerly, RI | Narangansett, RI | Old Saybrook, CT | New London, CT

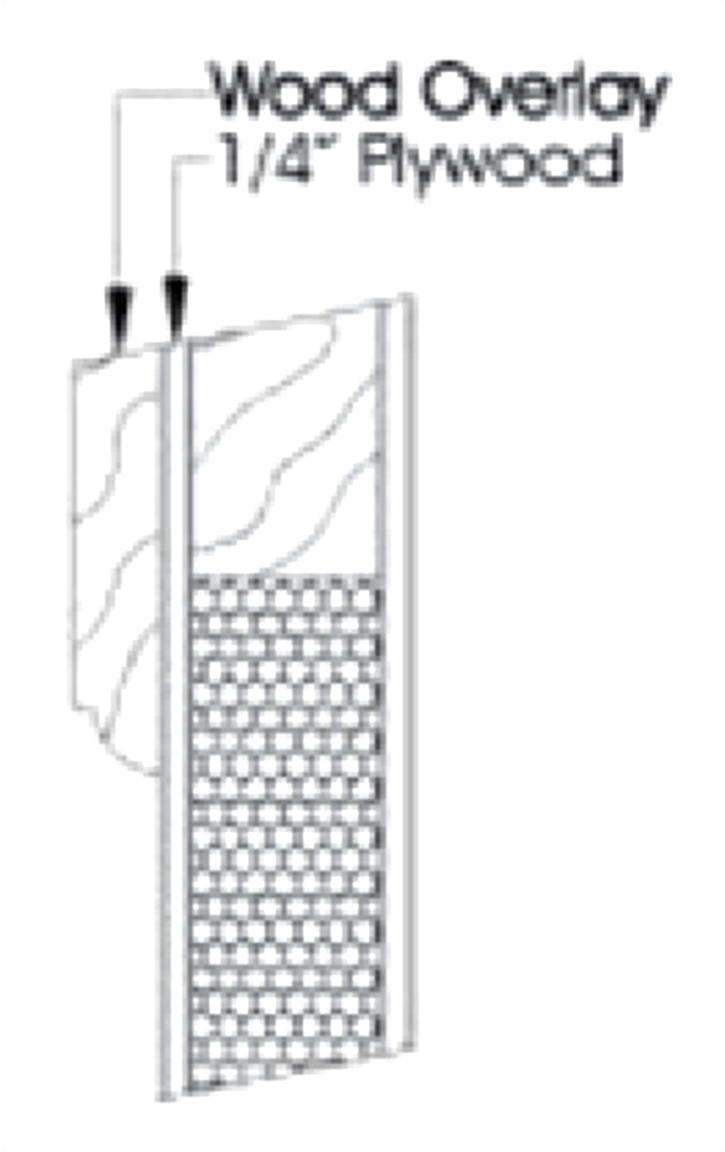

Heritage Classic™ C-Series is one of Northwest Door’s finest handcrafted wood carriage residential garage doors. The C-Series has an additional layer of T&G wood on the door face of the E-Series doors. The 1×4, 1×6 or 1×8 T&G wood can run vertically, horizontally, diagonally or in a herringbone configuration to your specifications. Skilled artisans can replicate almost any design that you or your architect can create. Choose from select fine woods like Cedar, Tight Knot Cedar, Redwood, Knotty Alder, VG Fir, Meranti and more. For more questions about our finish and trimming options, call us today. We serve Narragansett, RI; Westerly, RI; New London, CT; Old Saybrook, CT and nearby areas.
Like what you see?
Contact Us for Your New Residential Garage Door
If you are looking for a new residential garage door, the professionals at Eastern Door Supply can help you find one. As the favored garage door supplier in Narragansett, RI; New London, CT; Old Saybrook, CT; and Westerly, RI; we ensure our clients get the doors that are right for them. There are many styles of residential garage doors, and all are great options when you rely on our garage door supplier.
If you spot a door that catches your eye, please get in touch with our team. We would be happy to provide you with more information about your desired residential garage door. With our high-quality products, you are sure to love the appearance and functionality of your garage door for years to come. Be sure to browse through our website to learn more about the details of our residential garage doors. Then, when you are ready, give us a call!
Product Details
GENERAL INFORMATION
● Frame thickness: 1-1/8″, Face material thickness: 1/4″, Overlay thickness: 3/4″
● Overall door thickness: 2.875″
● End Stiles: 5-1/2″, Center Stiles: 10
● Bottom Rail: 7-1/2″, Top Rail: 5-1/2″, Meeting Rail width combined: 5″
● Arches: Standard radius for doors up to 10′ wide door are 15′-0″ radius, those over 10′ wide are a single 58′-0″ radius or two 15′-0″ radius arches (double arches)
● Calculated insulation rating through section, R Value=6.18 * R values are calculated specifically for the colder climates and offer the best long-term insulating value.
● Finish: Face sanded ready for finishing
HARDWARE
The Heritage Classic™ C-Series is equipped with heavy duty, 15″ radius torsion hardware; track is 2″, verticals are angle-mounted, and the horizontal track has continuous reinforcing angle. 3″ track supplied when required by weight. Long stem 10 ball bearing rollers with nylon races, non-corrosive door fixtures and graduated 14 Ga. double end hinges are standard. All doors include one strut per section, 2-1/4″ or 3″ depending on door width and weight.
| Standard Widths: | 8’ – 0” | 9’ – 0” | 16’ – 0” | 18’ – 0” | ||
|---|---|---|---|---|---|---|
| Standard Height: | 7’ – 0” | 8’ – 0” | 10’ – 0” | 11’ – 0” | 12’ – 0” | 14’ – 0” |

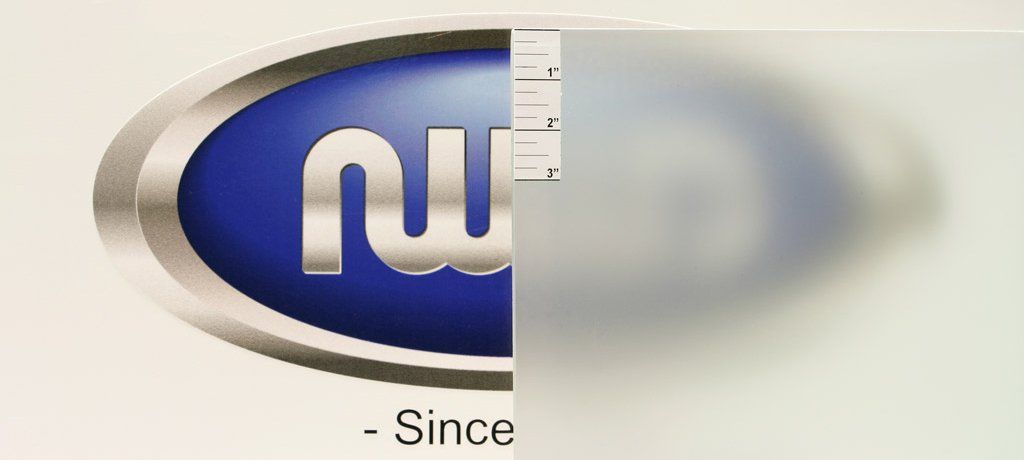

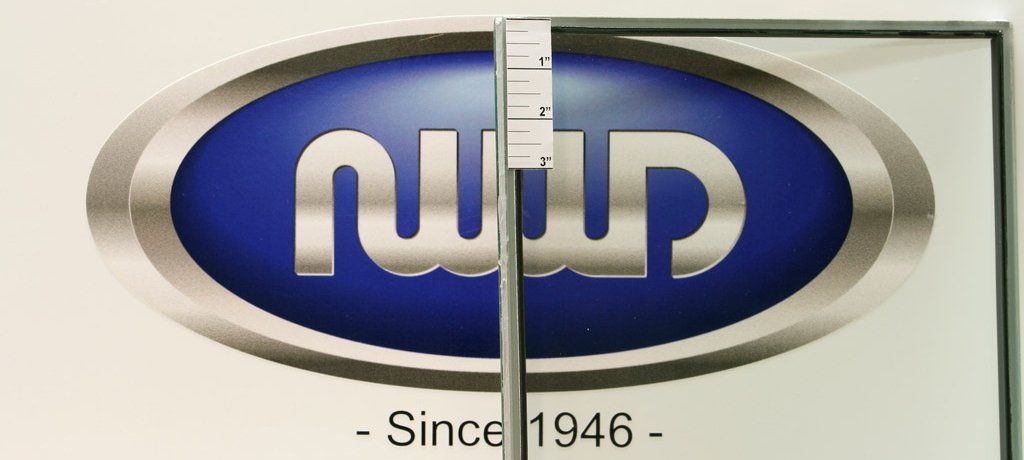

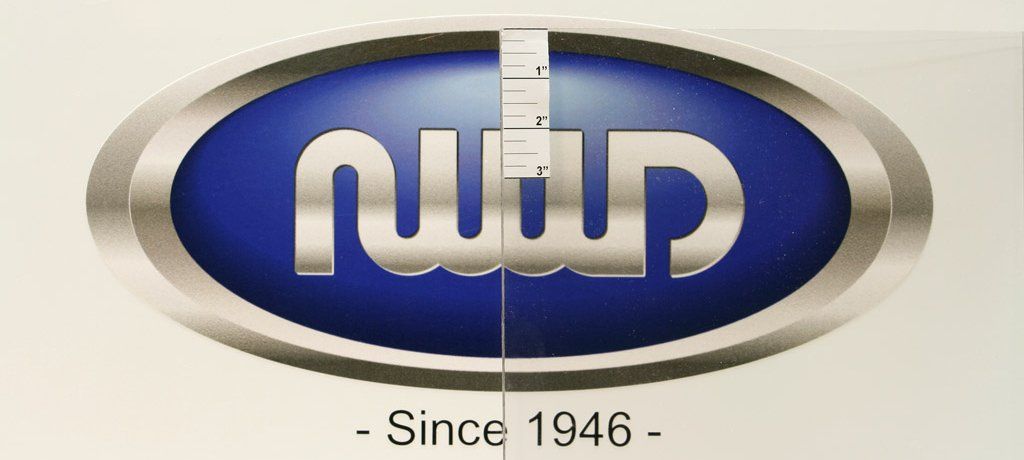

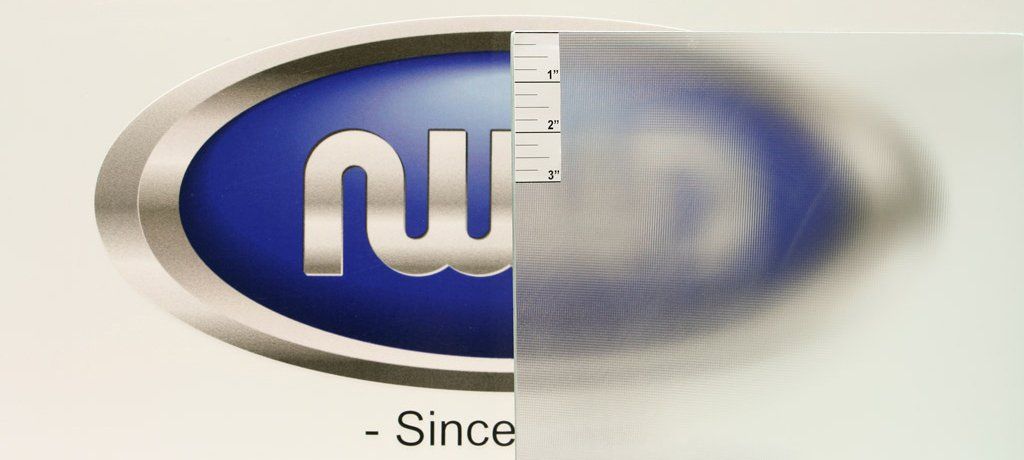

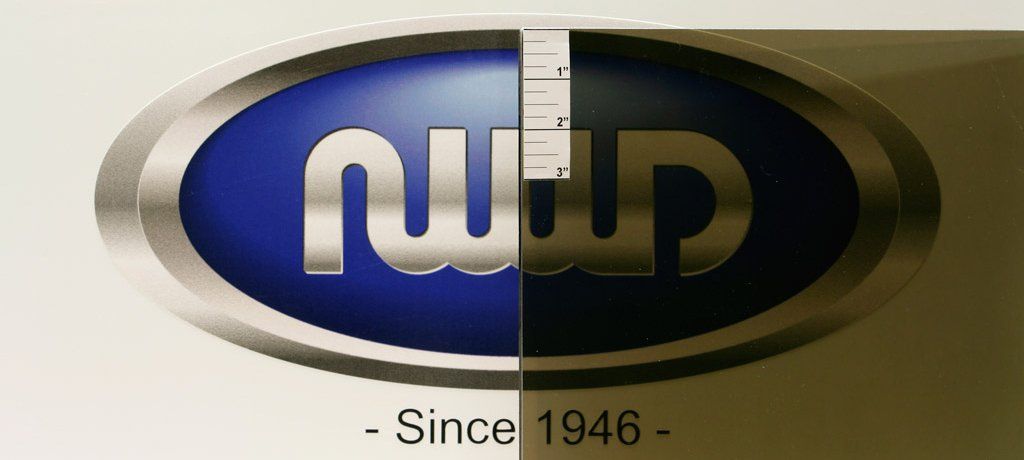

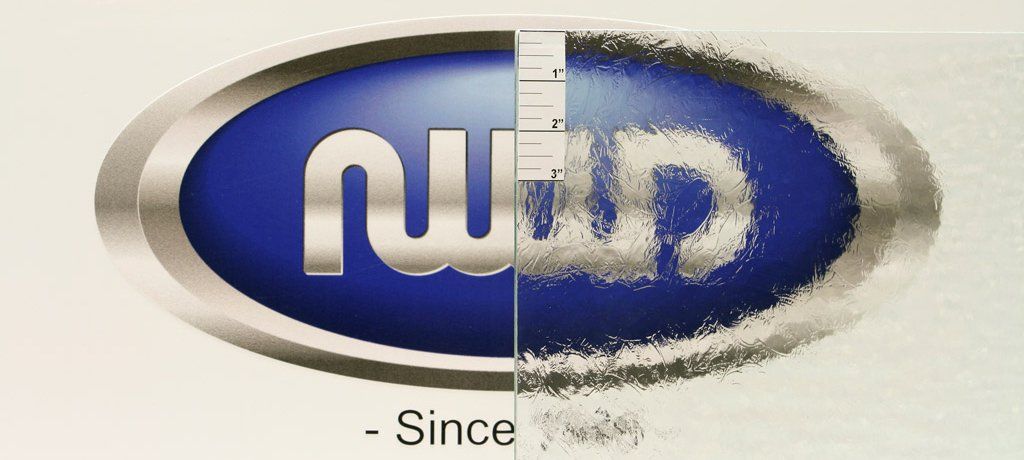

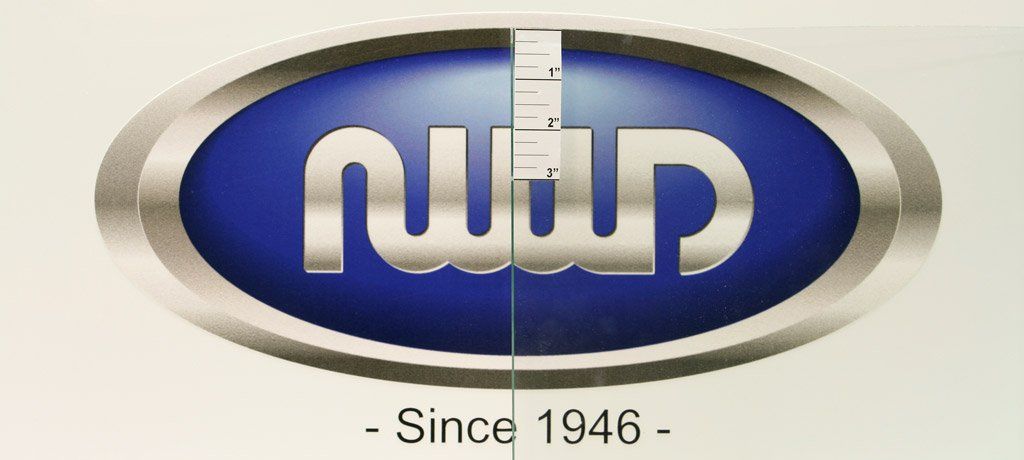

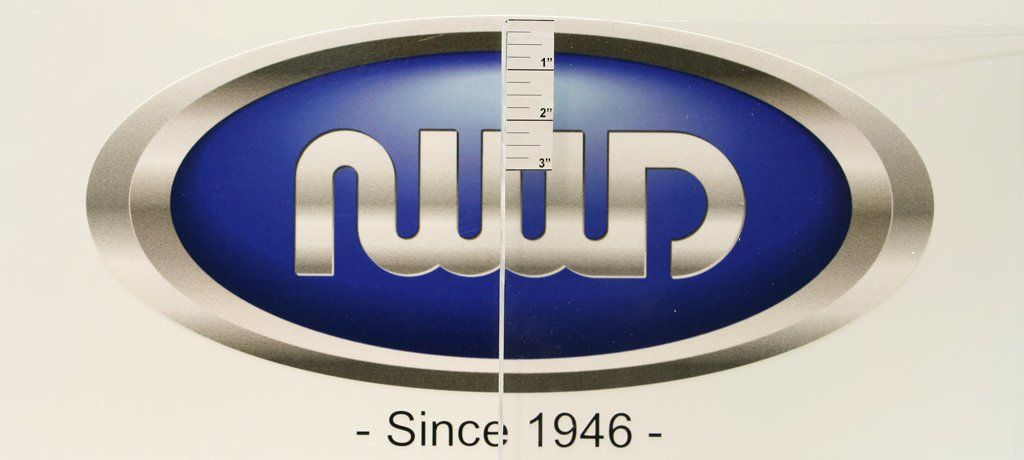

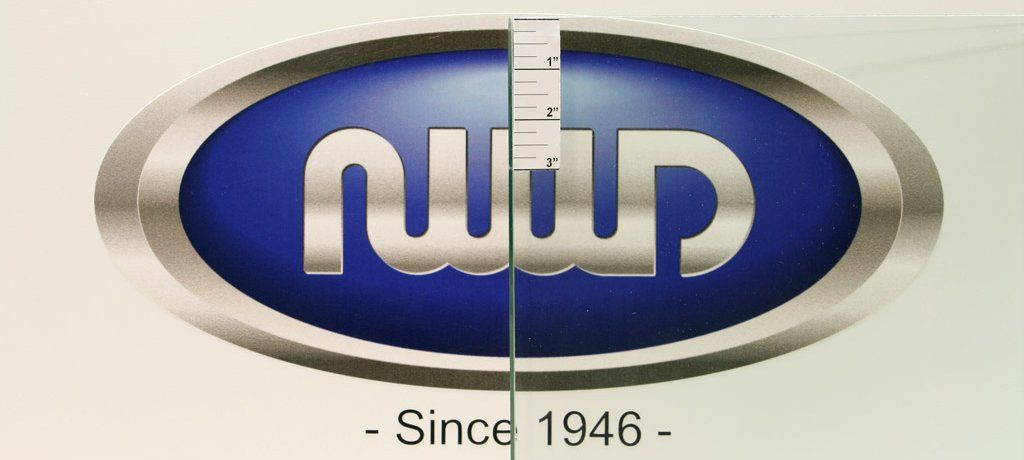

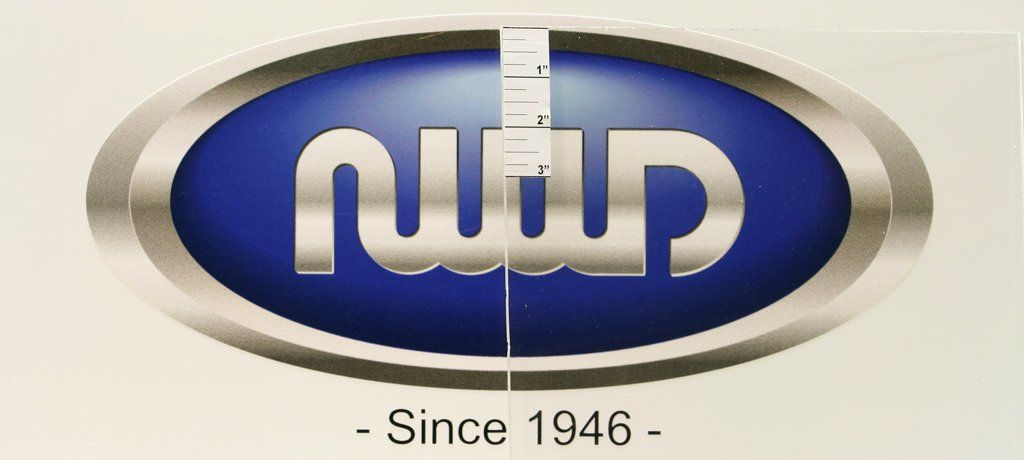

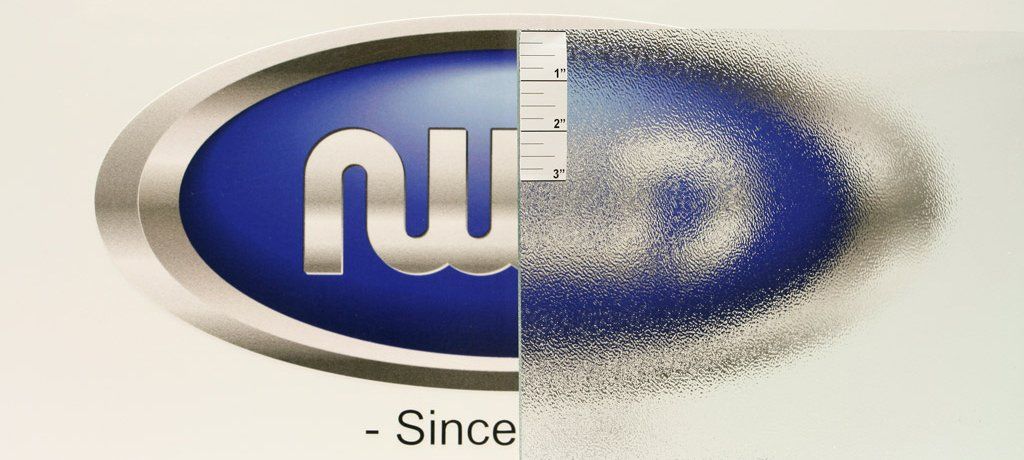

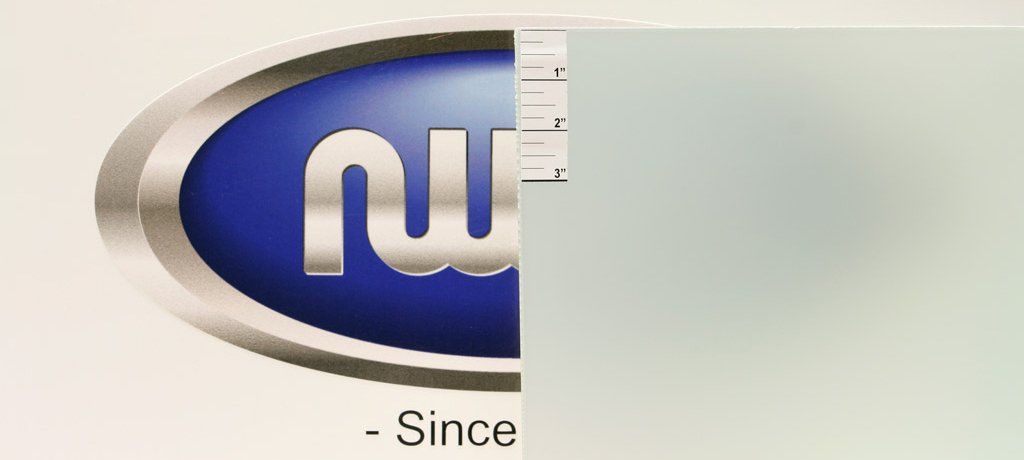

Glass Options
The actual color may slightly vary from what you are seeing, depending on the color calibration of your computer monitor.

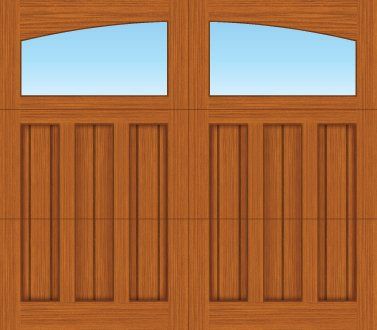

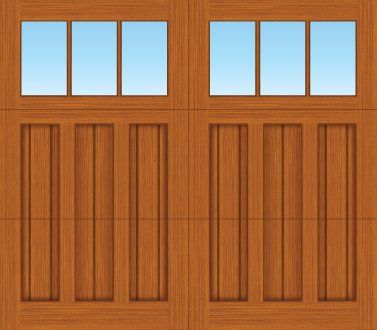

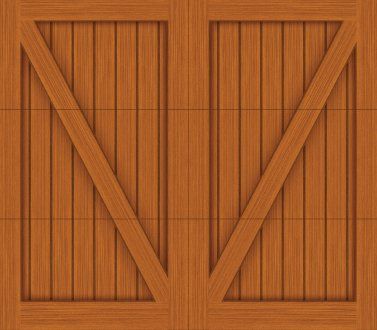

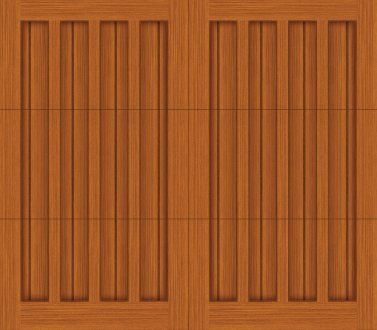

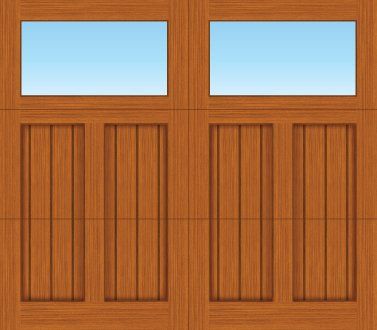

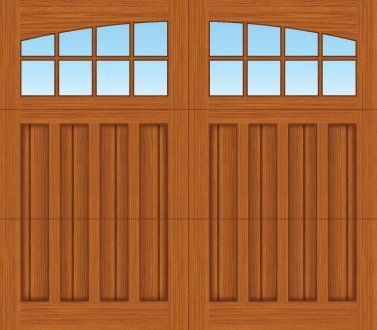

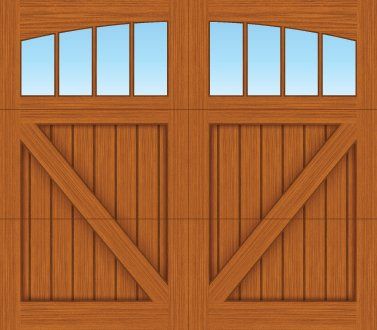

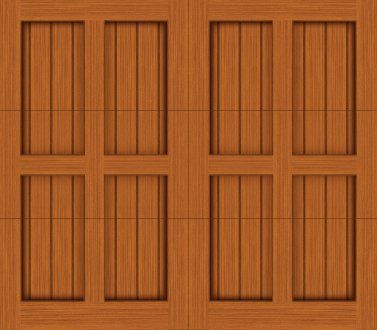

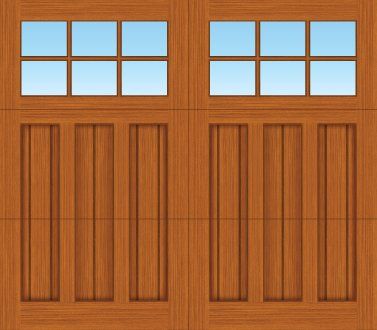

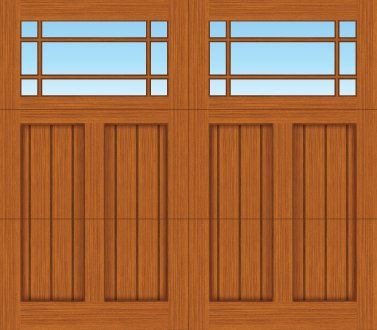

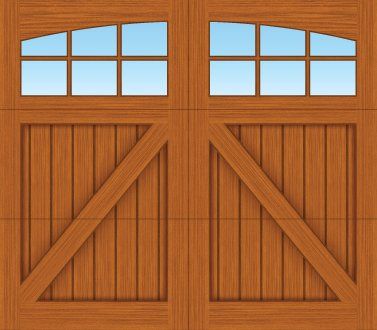

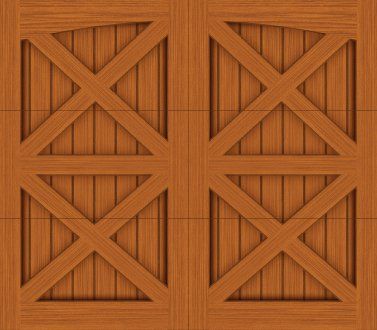

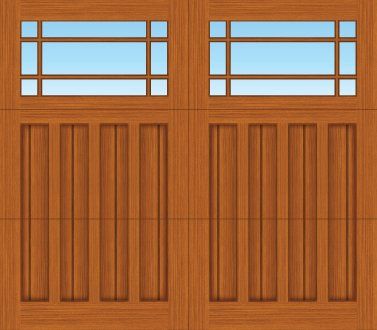

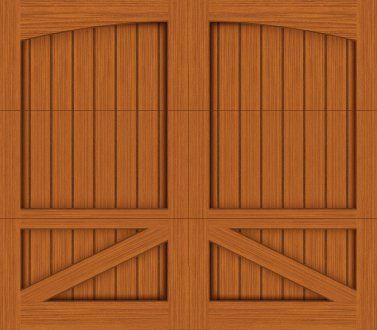

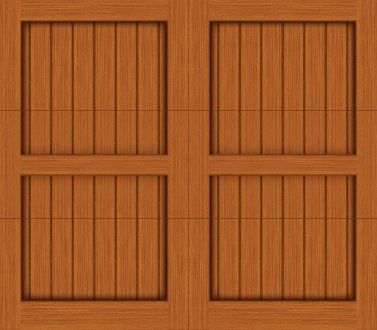

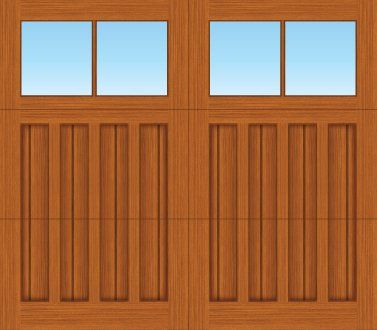

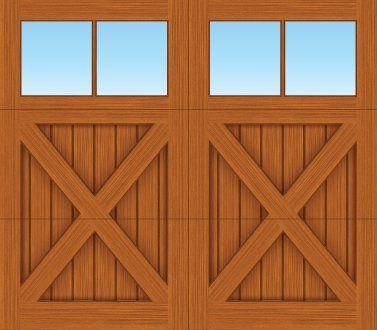

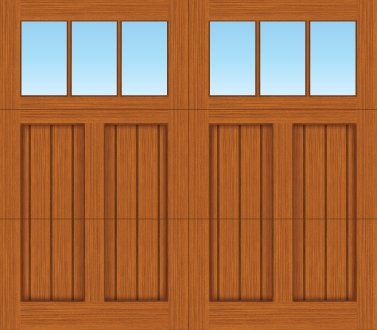

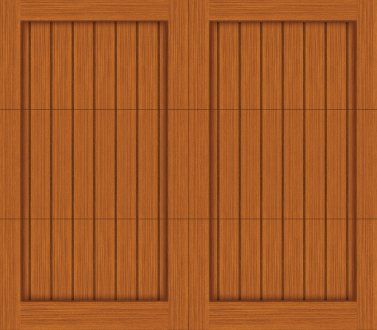

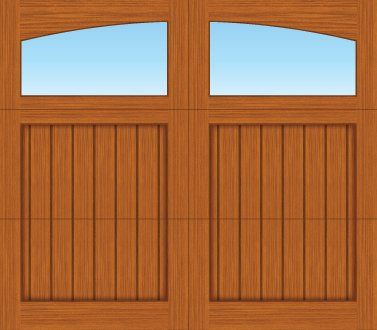

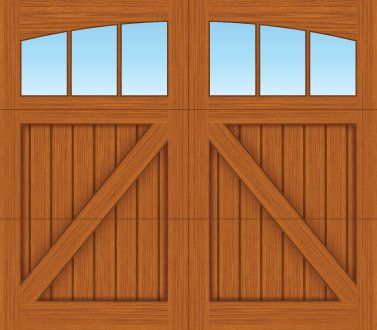

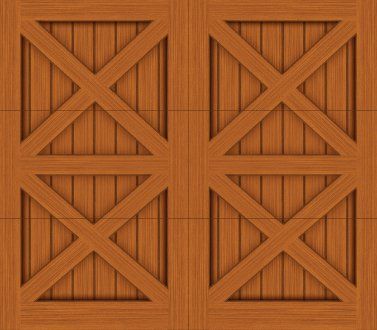

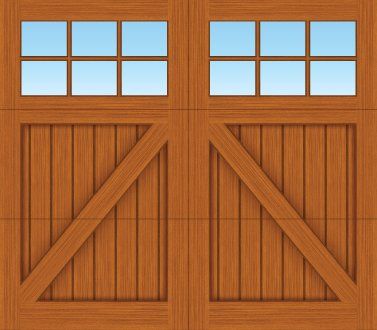

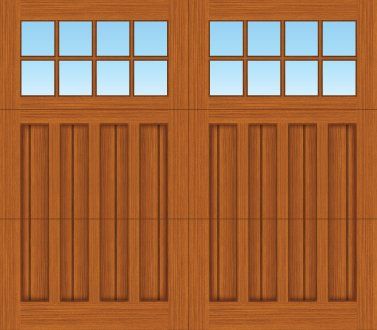

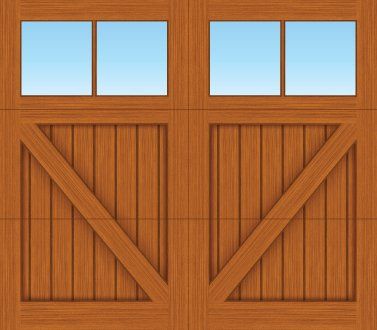

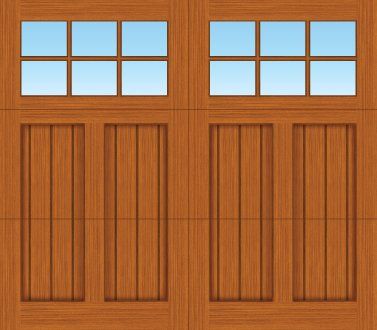

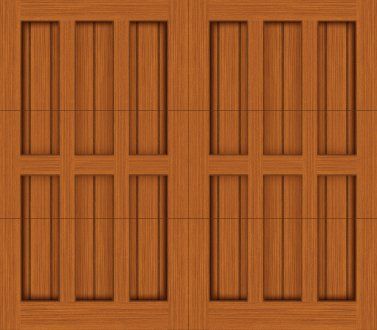

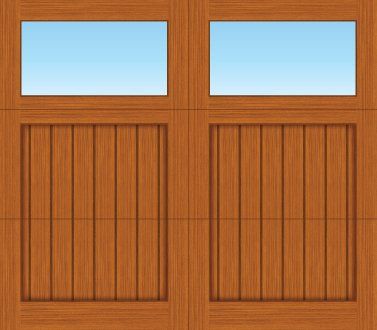

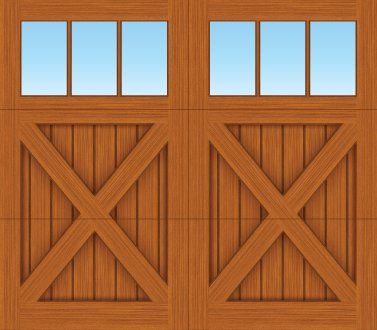

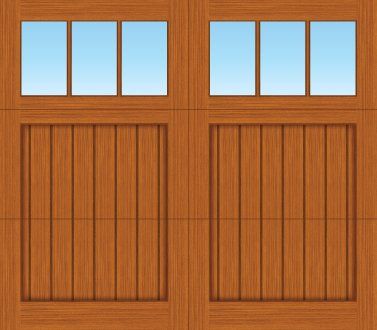

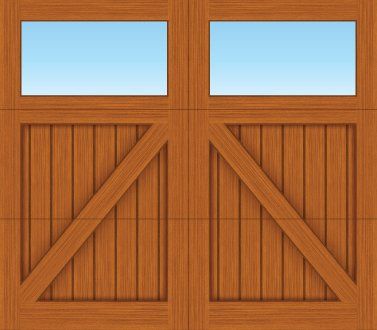

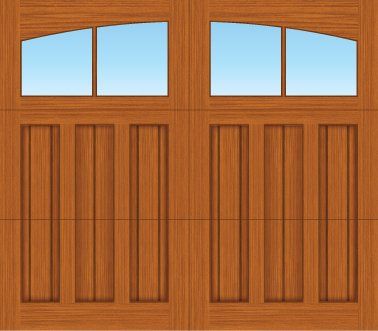

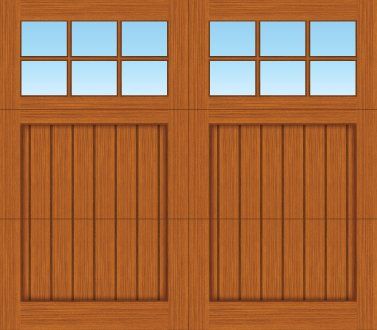

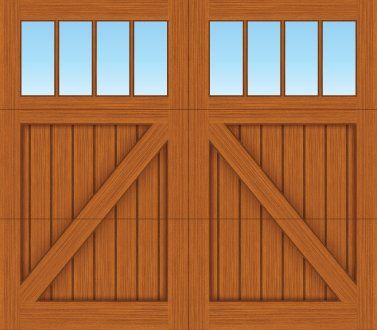

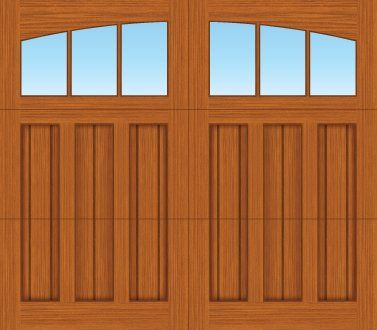

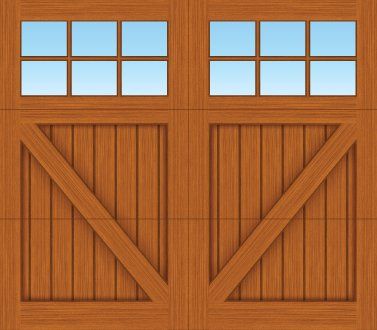

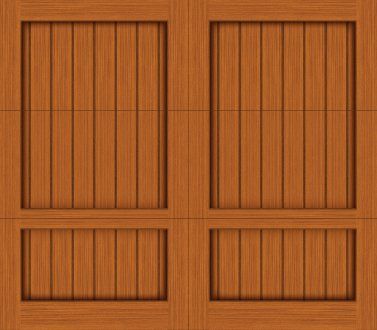

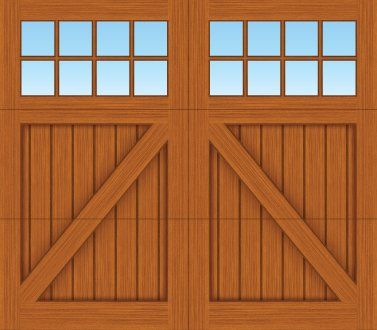

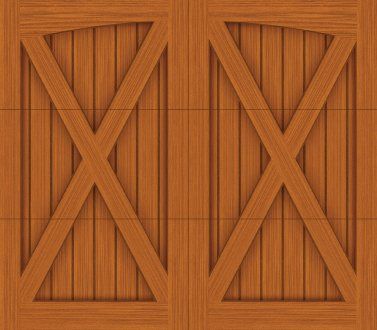

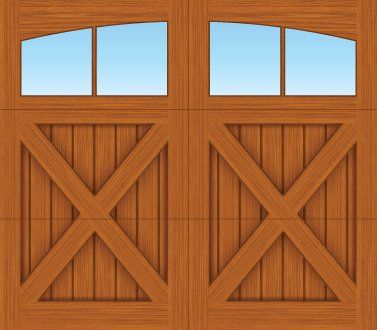

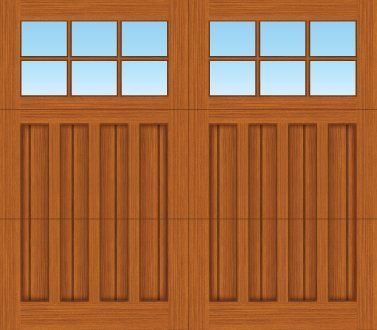

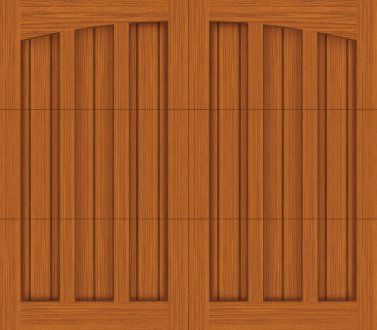

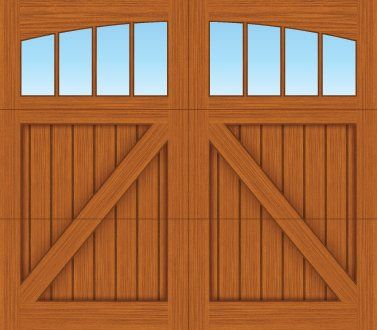

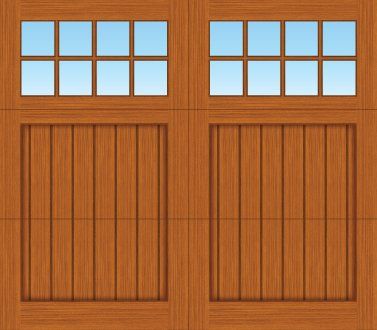

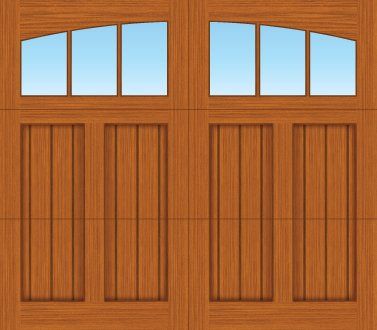

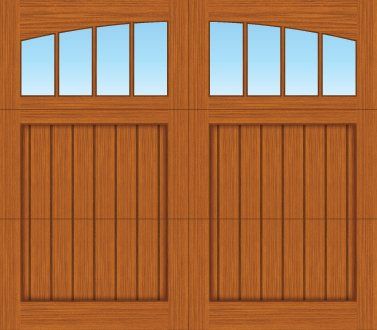

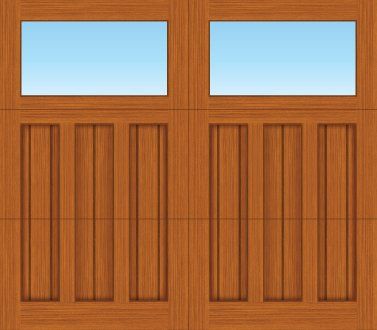

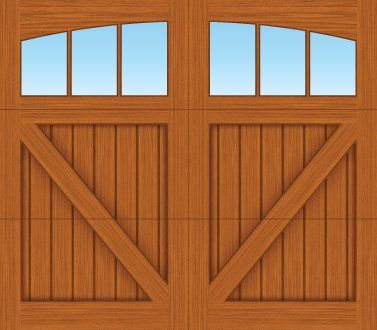

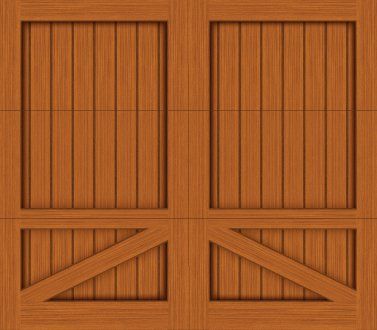

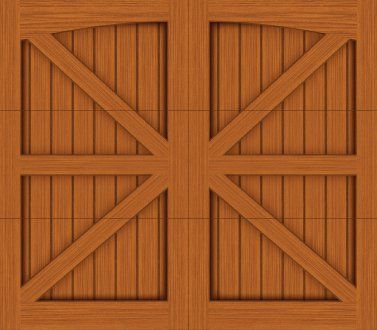

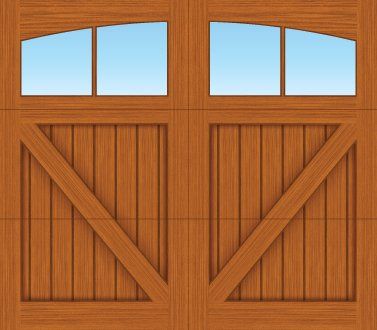

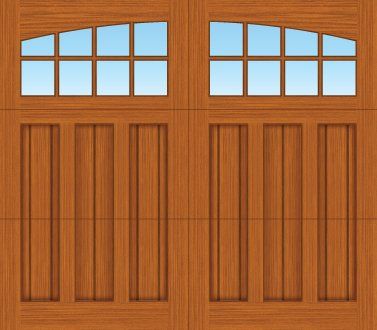

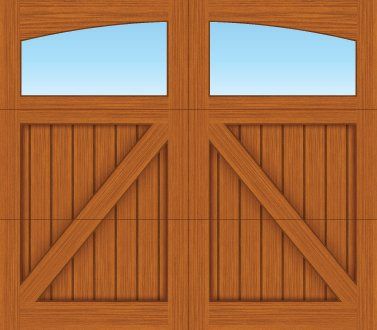

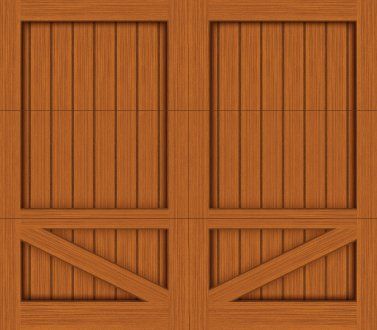

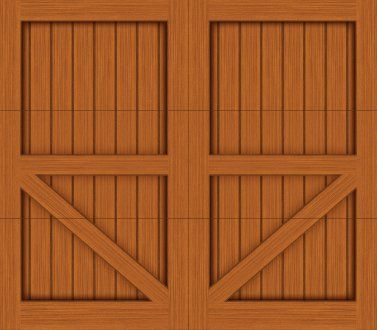

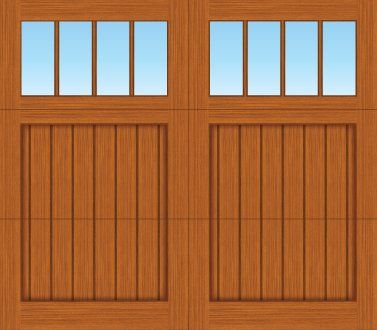

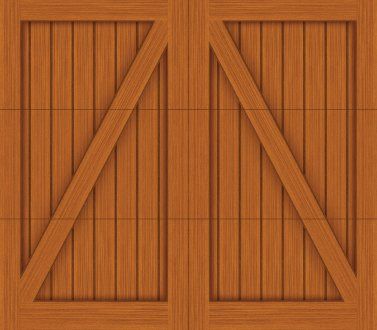

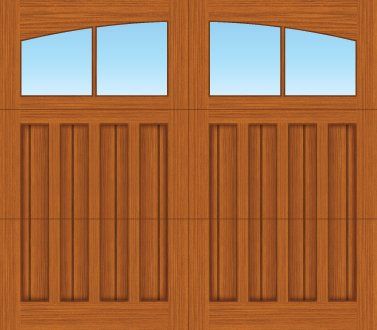

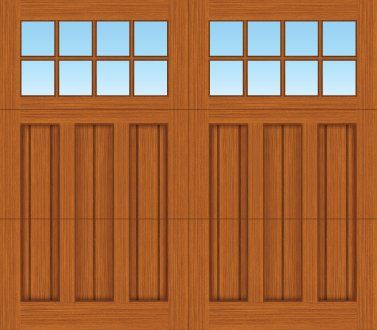

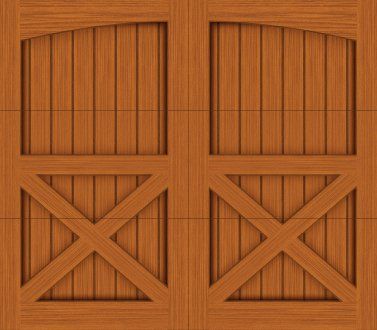

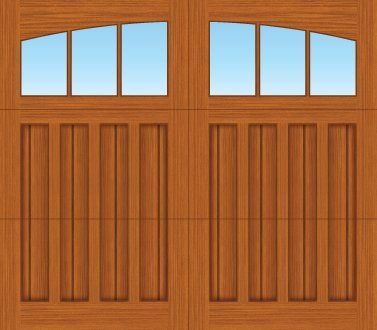

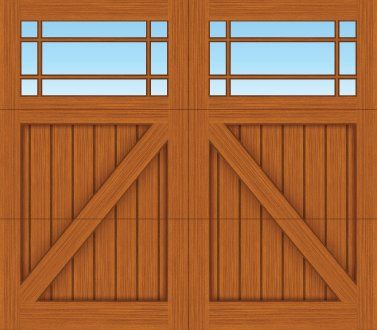

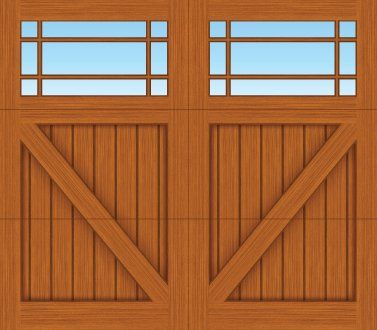

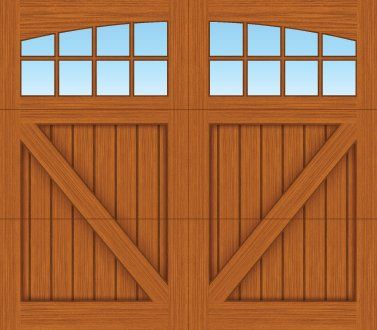

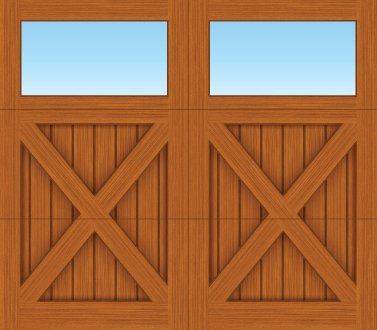

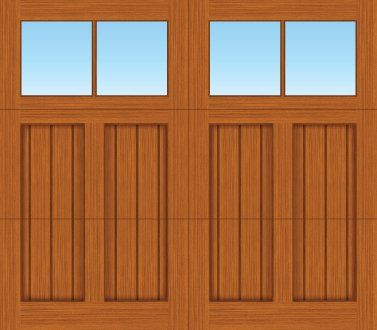

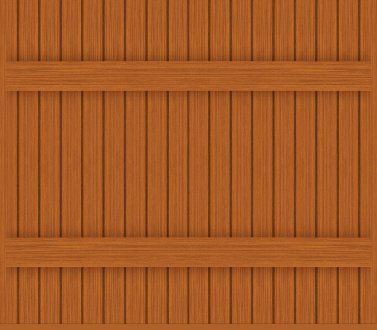

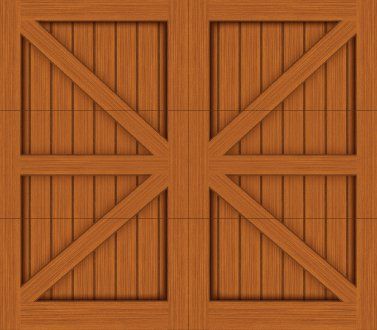

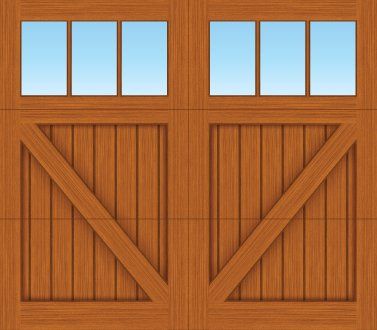

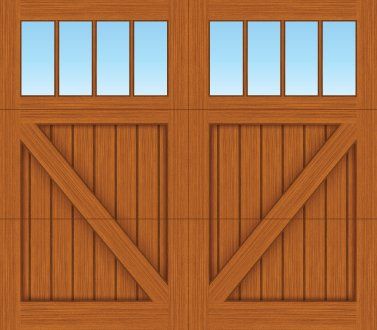

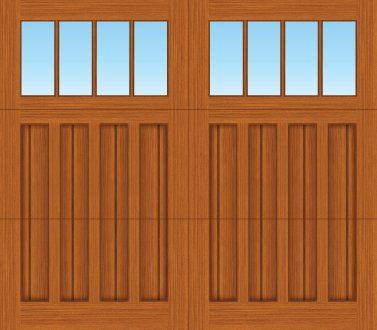

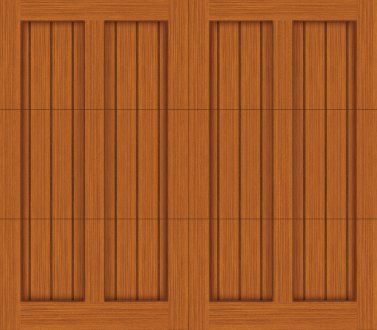

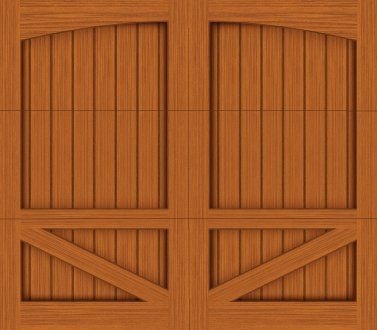

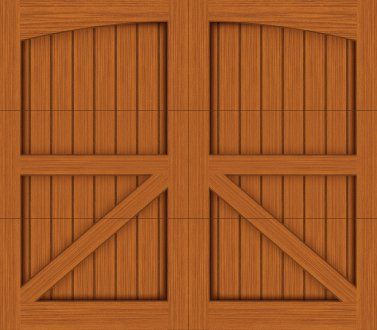

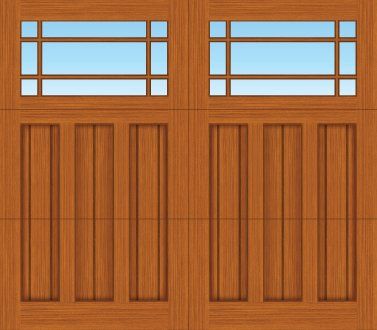

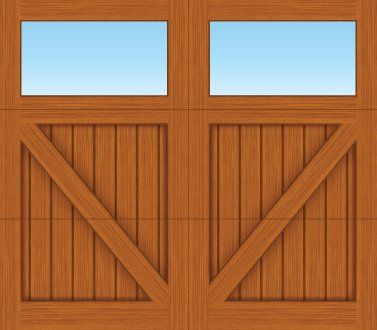

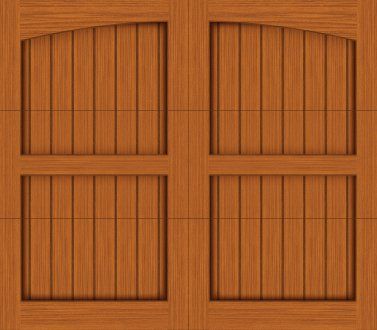

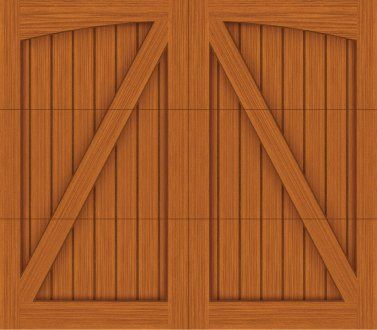

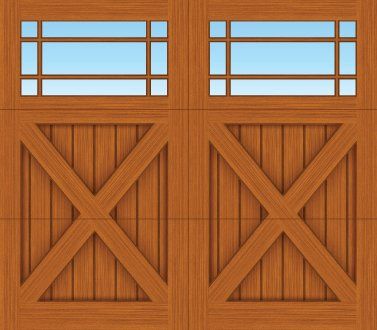

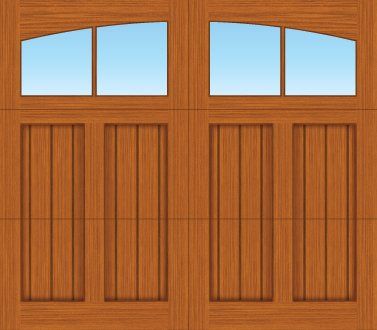

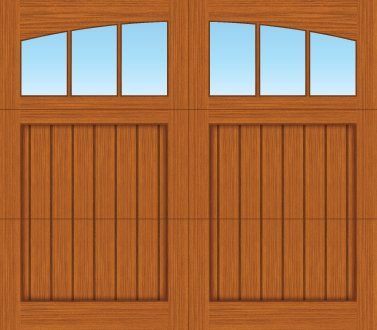

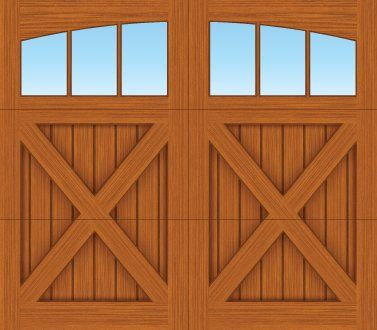

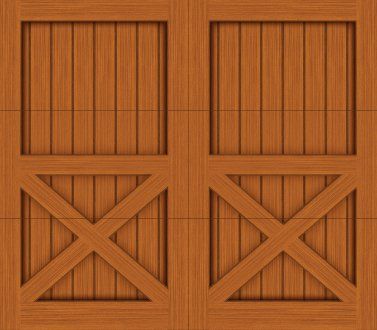

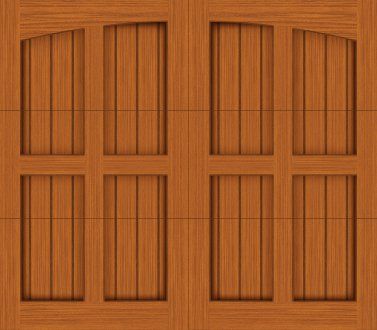

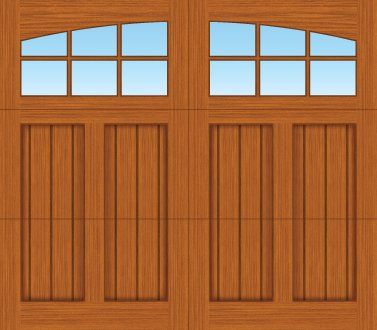

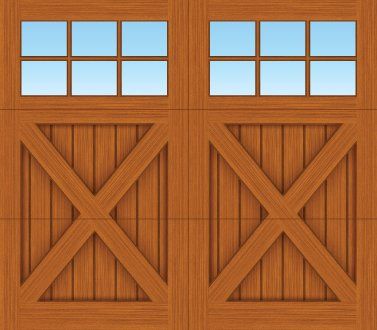

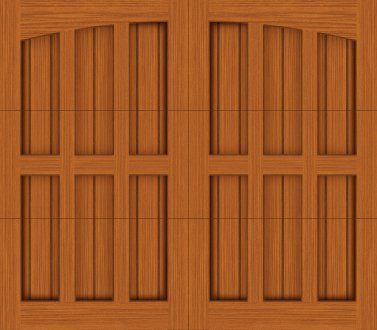

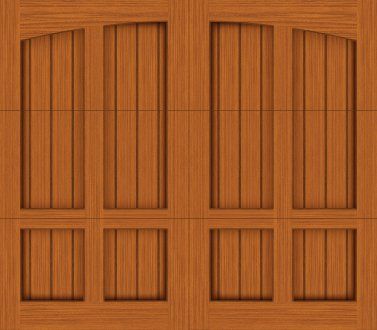

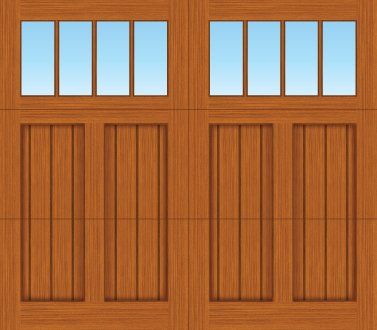

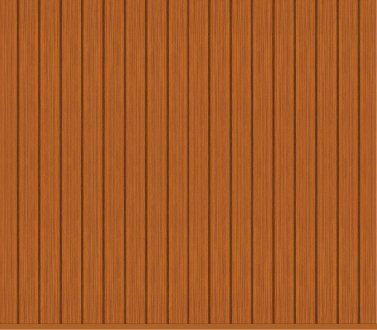

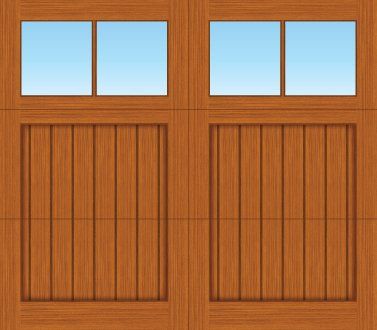

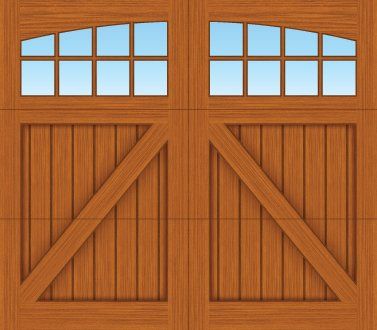

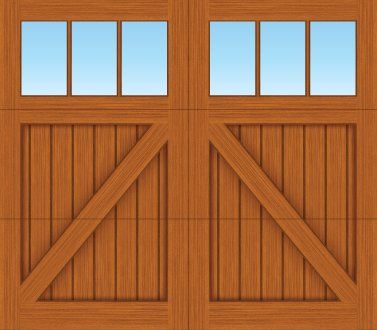

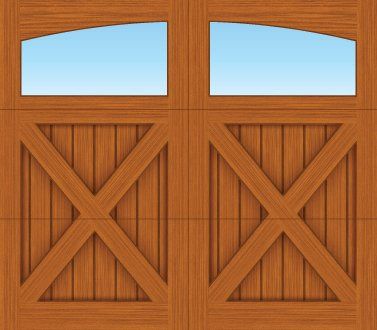

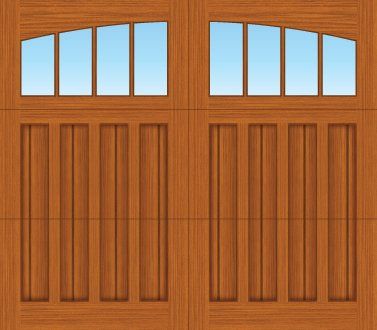

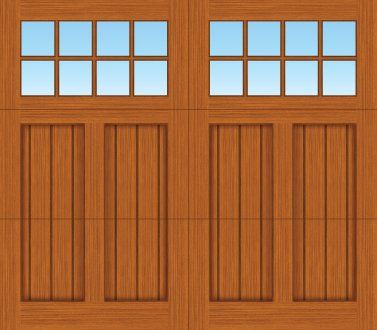

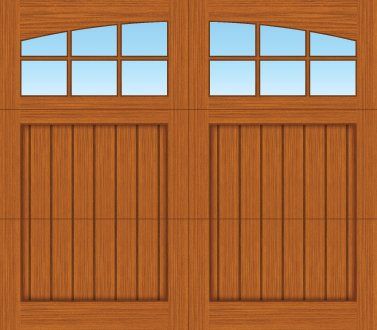

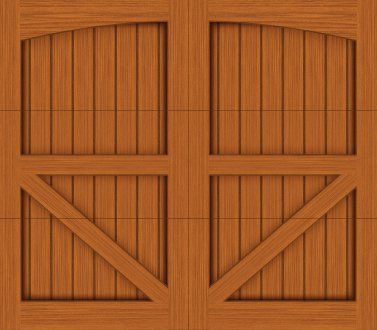

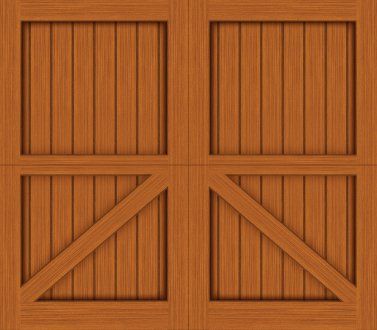

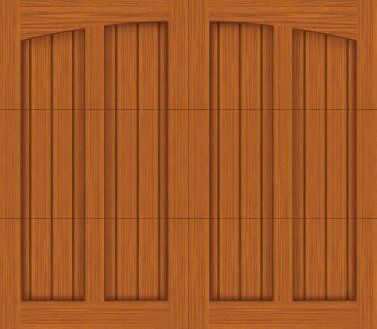

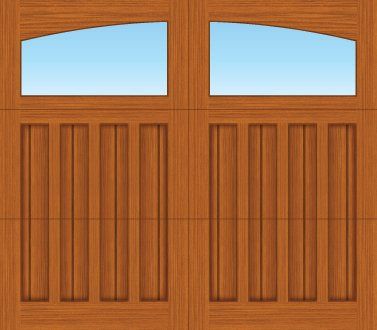

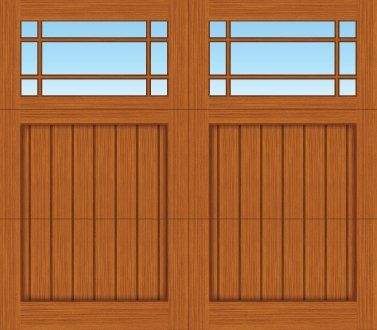

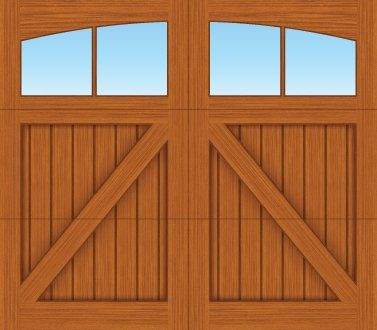

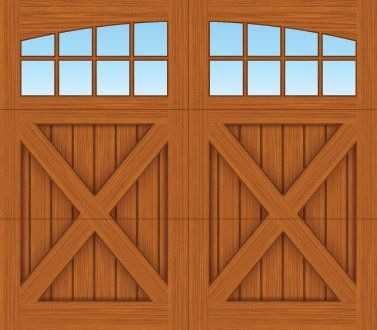

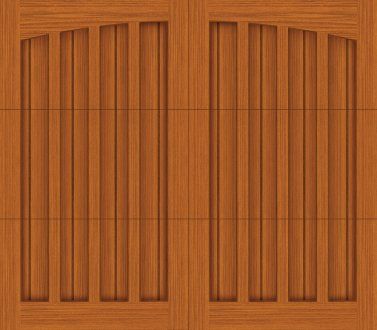

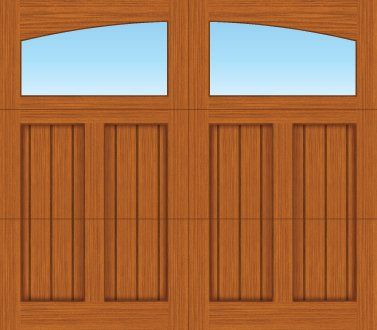

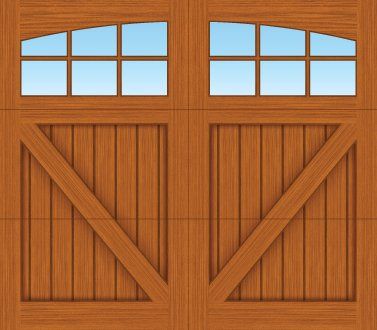

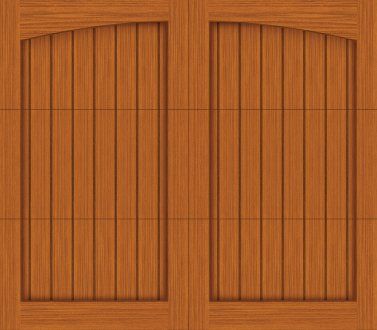

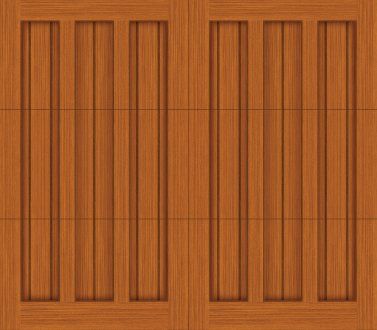

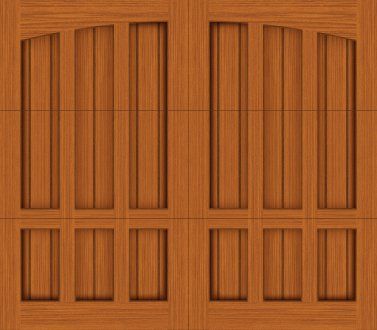

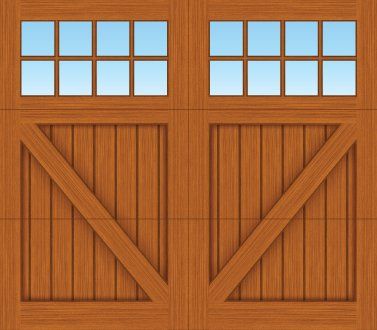

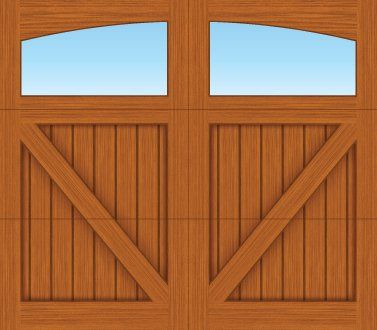

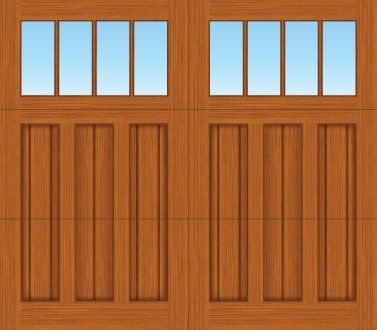

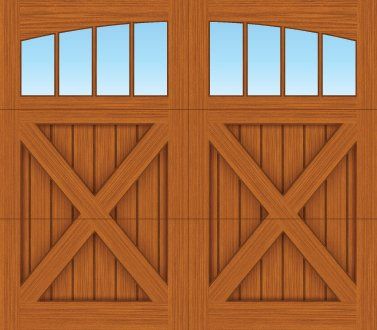

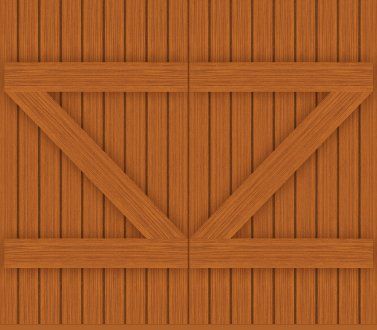

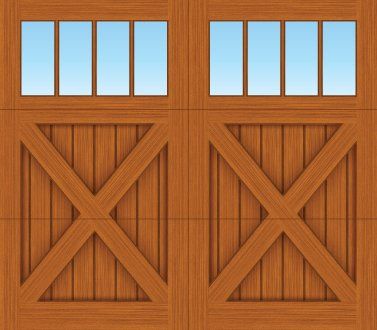

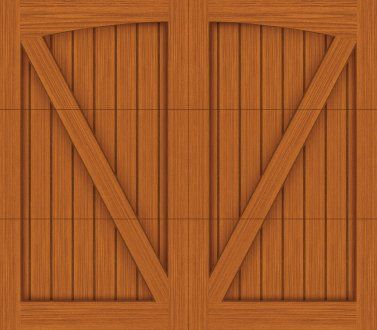

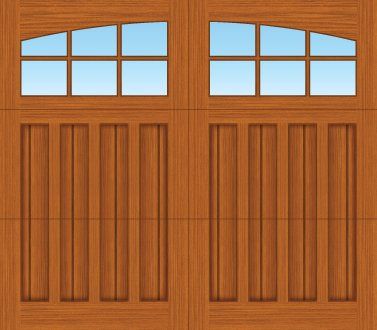

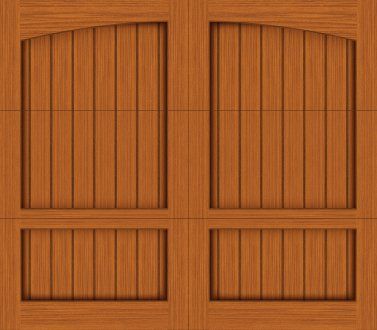

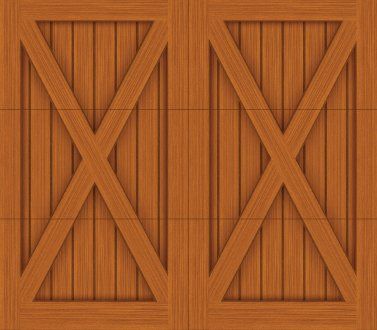

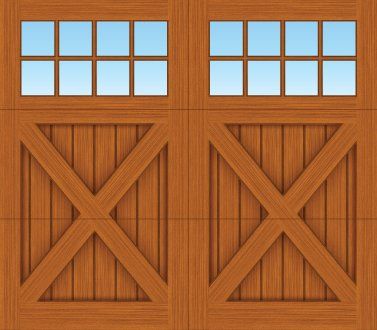

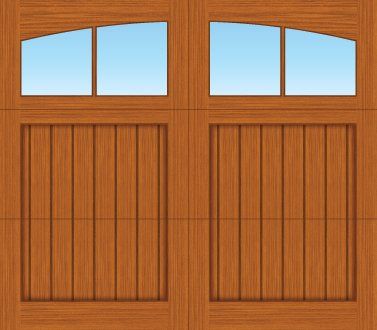

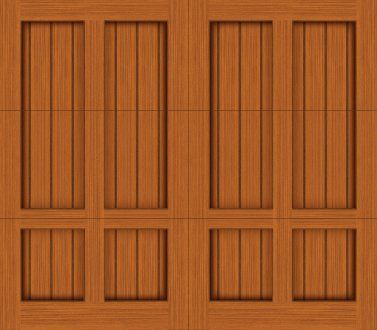

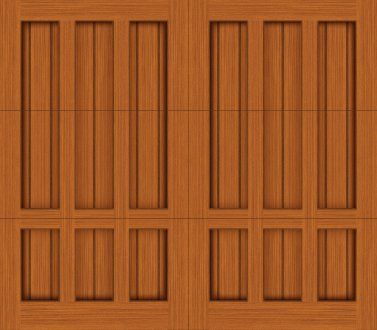

Design Gallery
Additional Options
Extended Life
25,000 Cycle Torsion Springs
Heavy Gauge Hinges
Heavy Duty Cables
OTHER OPTIONS
Prime Paint
Single Pane and Insulated Glass Options
Low Clearance, High Lift, or Vertical Lift Hardware
White Nylon Ball Bearing Rollers
Angle Mounted Track
Double End Hinges and Long Stem Rollers
25,000, 50,000 and 100,000 Cycle Torsion Springs

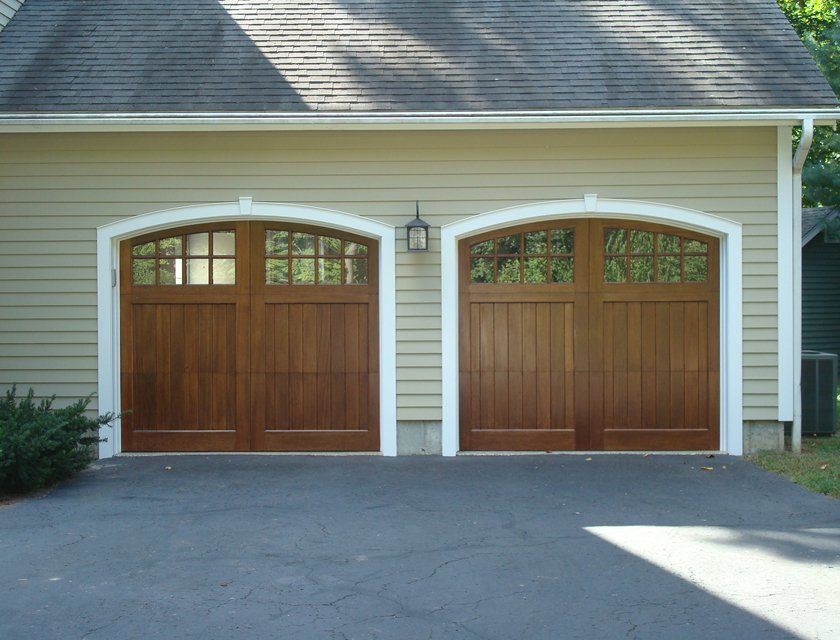

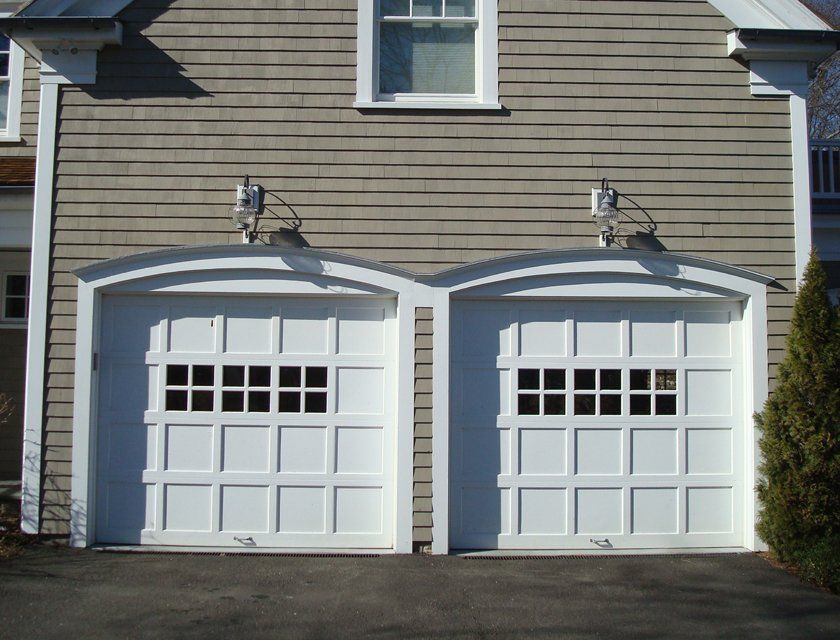

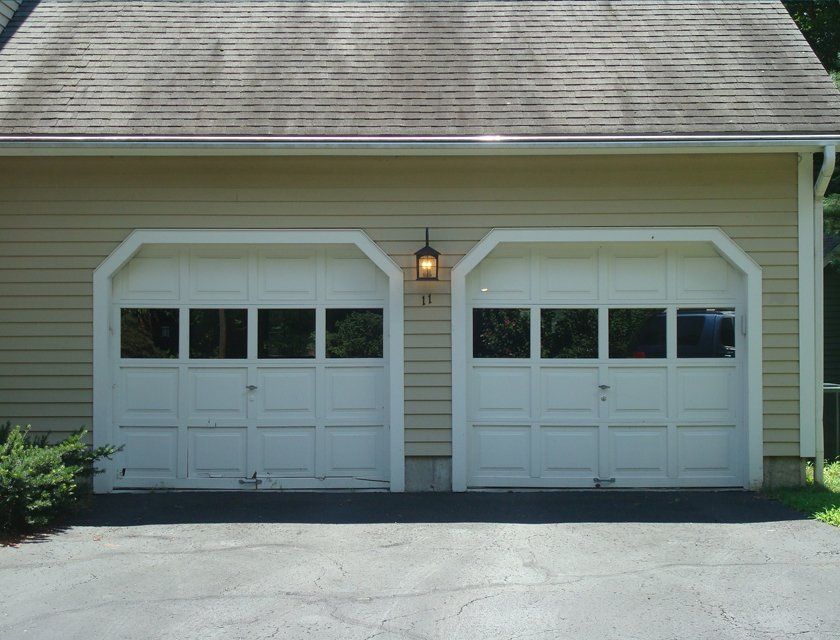

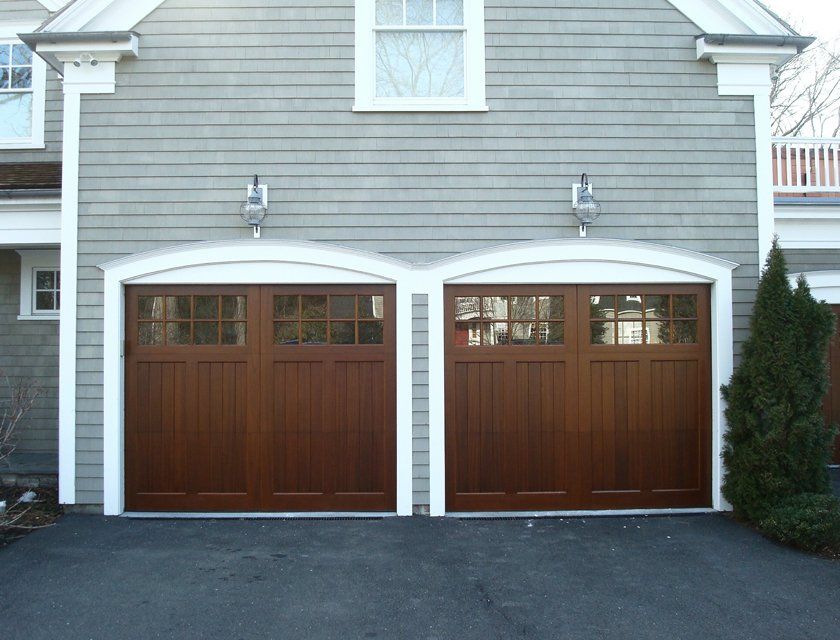

Before & After
