Heritage Classic™ E-Series
Clean, Handcrafted & Durable Residential Garage Doors
Westerly, RI | Narrangansett, RI | Old Saybrook, CT | New London, CT
Heritage Classic™ E-Series is one of Northwest Door’s finest handcrafted wood, carriage-house style residential garage doors. These flush insulated wood doors are built with specially framed and sized sections to receive wood overlay designs. Skilled artisans can replicate most any design that you or your architect can create. Choose from select fine woods like Cedar, Tight Knot Cedar, Redwood, Knotty Alder, VG Fir, Meranti and more. For more questions about our residential garage doors, call us today. We serve New London, CT; Old Saybrook, CT; Narrangansett, RI; Westerly, RI and nearby areas.
Like what you see?
Product Details
GENERAL INFORMATION
● Frame thickness: 1-1/8″, Face material thickness: 1/4″, Overlay thickness: 3/4″
● Overall door thickness: 2-1/4″
● End Stiles: 5-1/2″, Center Stiles: 10
● Bottom Rail: 7-1/2″, Top Rail: 5-1/2″, Meeting Rail width combined: 5″
● Arches: Standard radius for doors up to 10′ wide door are 15′-0″ radius, those over 10′ wide are a single 58′-0″ radius or two 15′-0″ radius arches (double arches)
● Calculated insulation rating through section, R Value=6.18 * R values are calculated specifically for the colder climates and offer the best long-term insulating value.
● Finish: Face sanded ready for finishing
HARDWARE
The Heritage is equipped with heavy duty 15″ radius torsion hardware; track is 2″, verticals are angle mounted, and the horizontal track has continuous reinforcing angle. 3″ track supplied when required by weight. Long stem 10 ball bearing rollers with nylon races, non-corrosive door fixtures and graduated 14 Ga. double end hinges are standard. All doors include one strut per section, 2-1/4″ or 3″ depending on door width and weight.
| Standard Widths: | 8’ – 0” | 9’ – 0” | 16’ – 0” | 18’ – 0” | ||
|---|---|---|---|---|---|---|
| Standard Height: | 7’ – 0” | 8’ – 0” | 10’ – 0” | 11’ – 0” | 12’ – 0” | 14’ – 0” |
Glass Options
The actual color may slightly vary from what you are seeing, depending on the color calibration of your computer monitor.

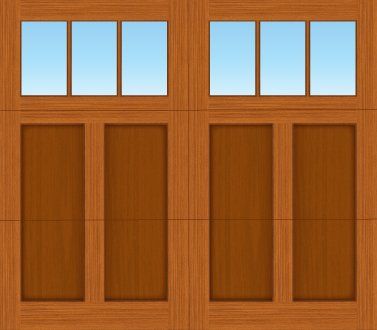

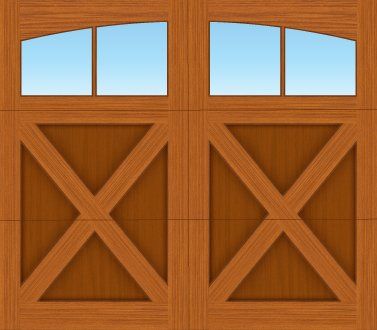

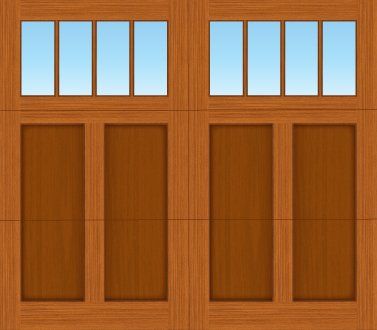

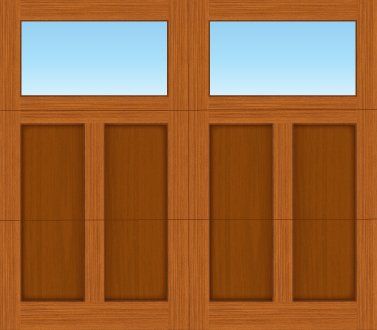

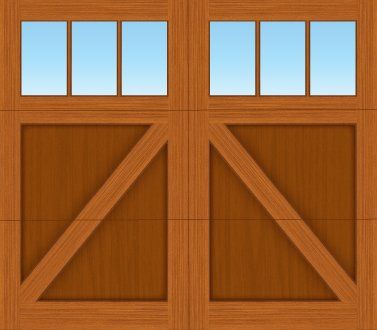

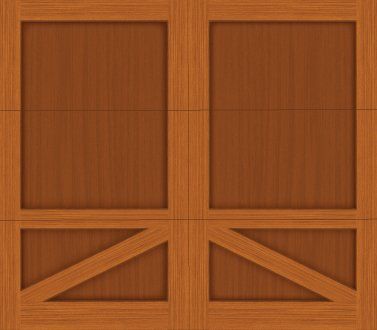

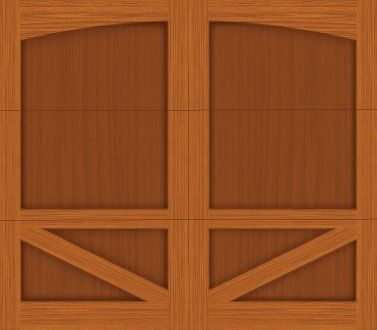

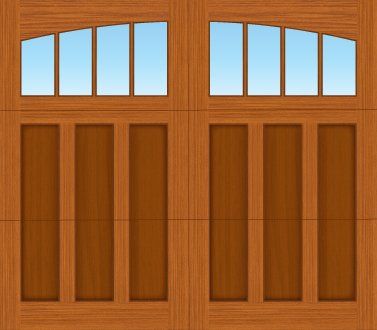

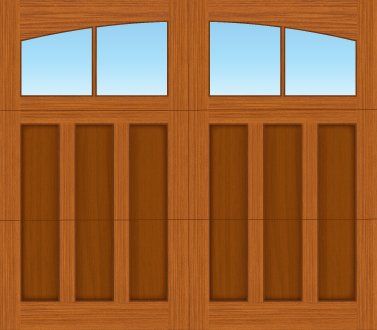

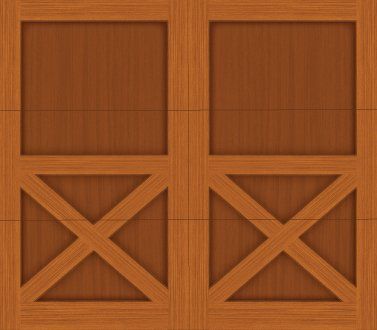

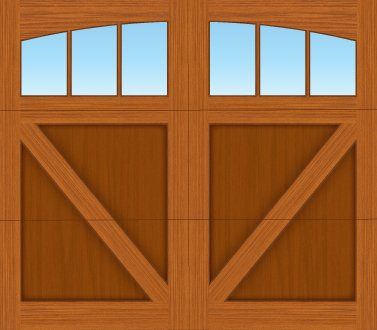

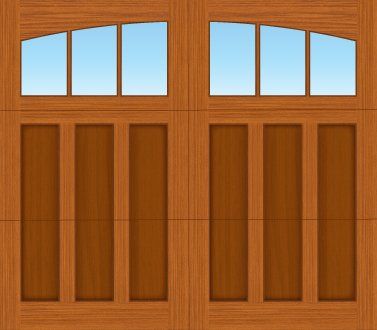

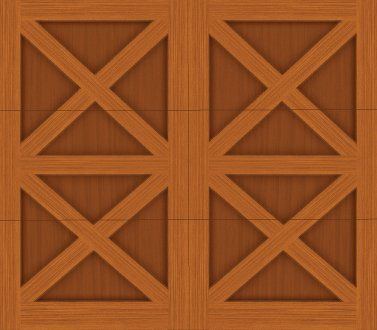

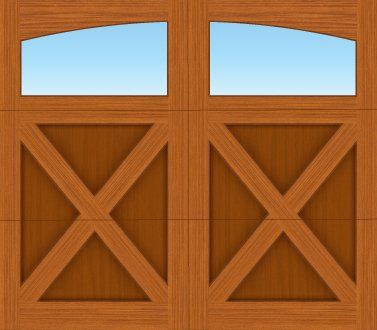

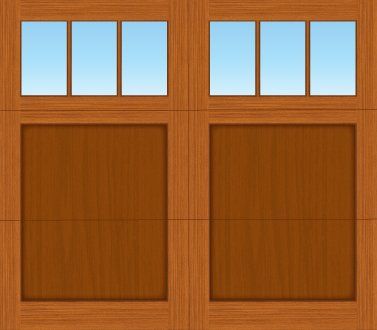

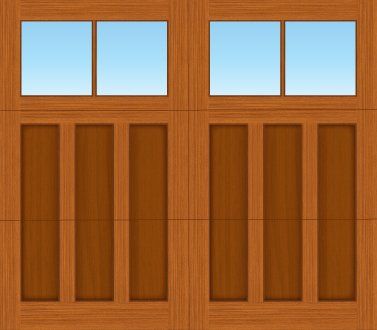

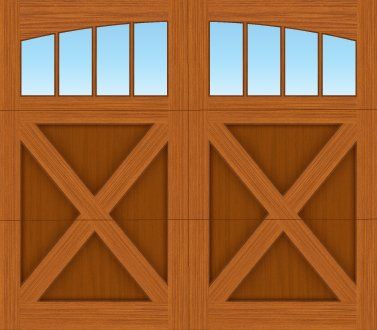

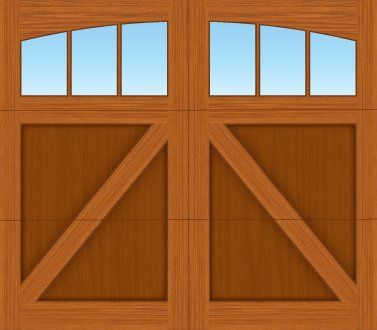

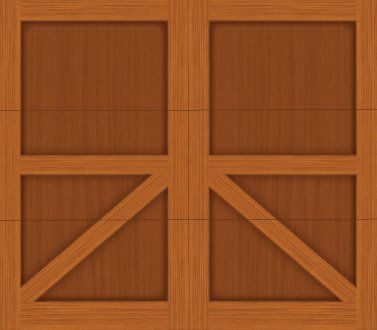

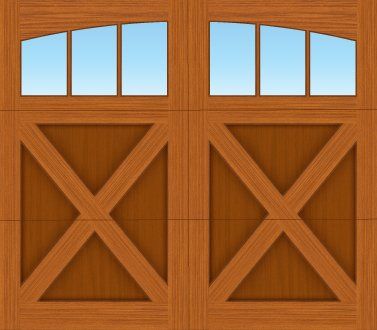

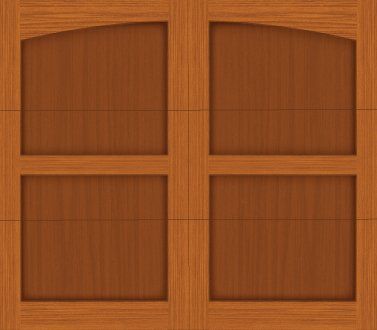

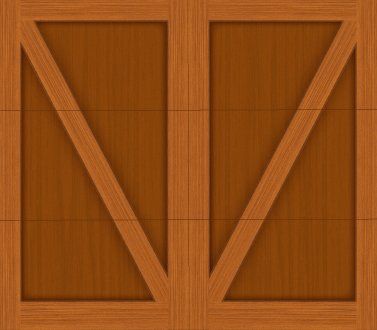

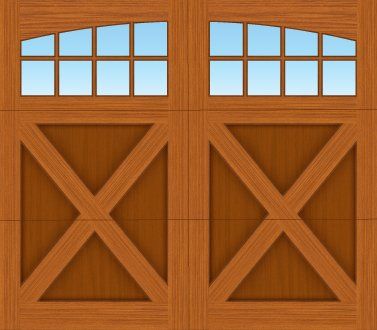

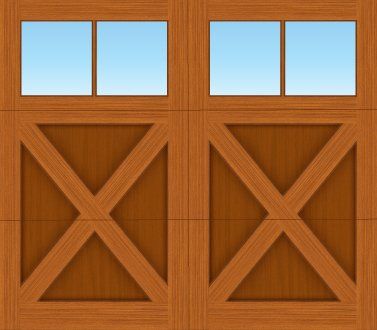

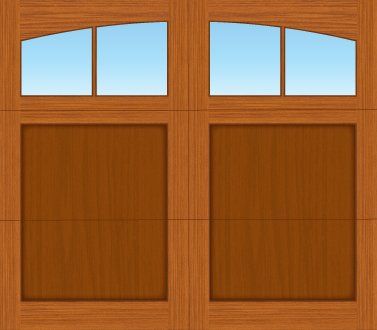

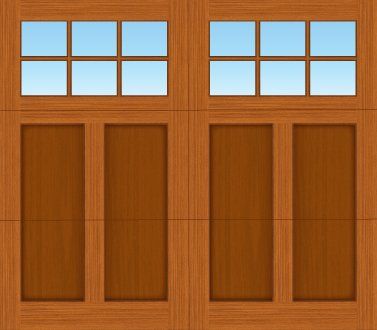

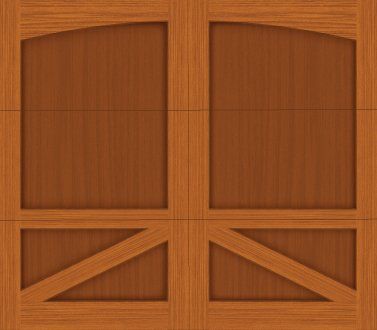

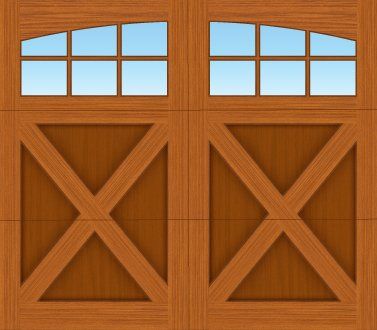

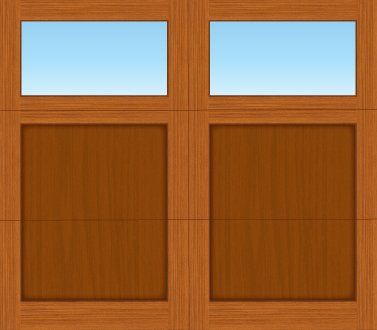

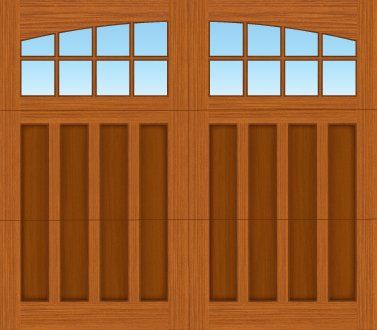

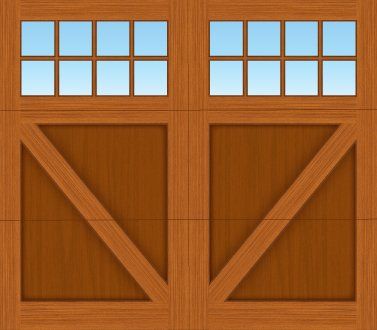

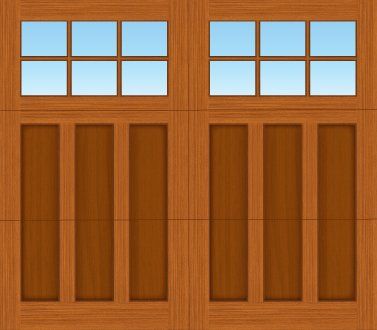

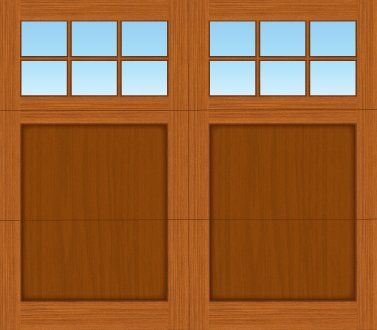

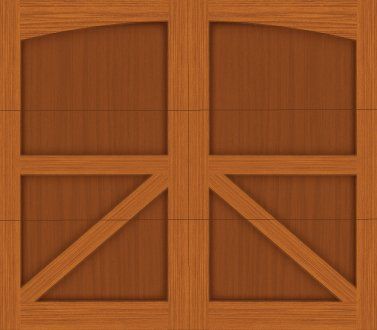

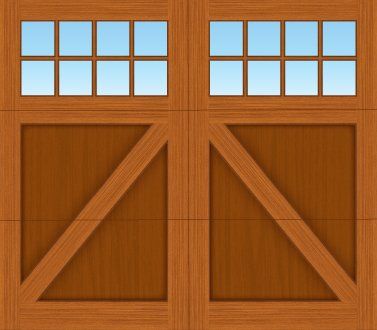

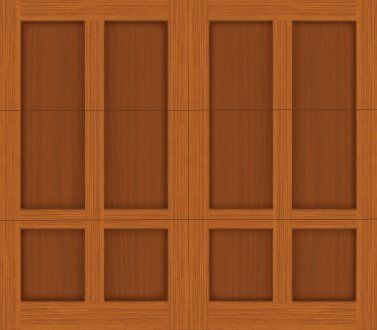

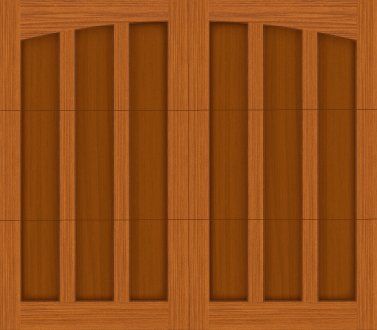

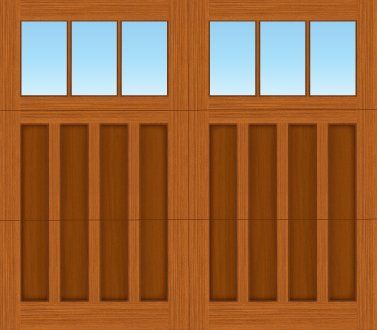

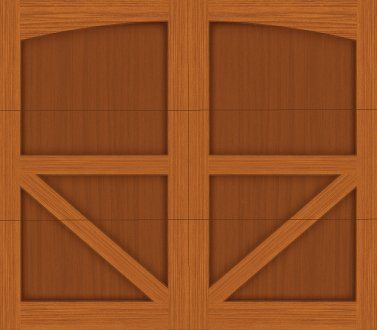

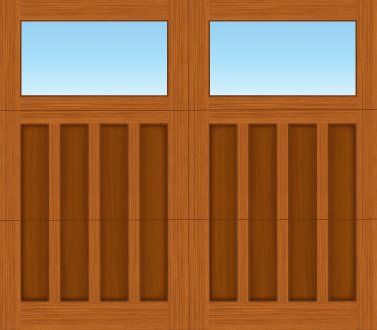

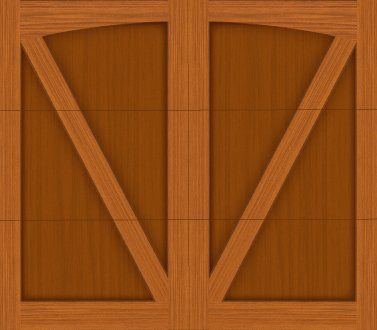

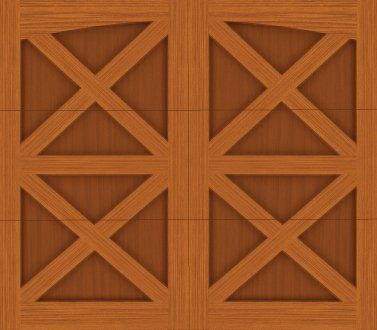

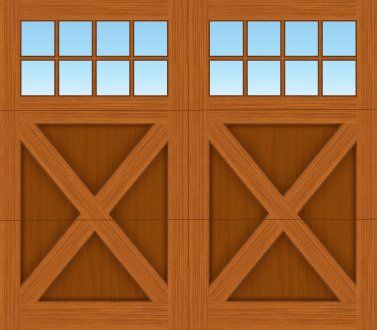

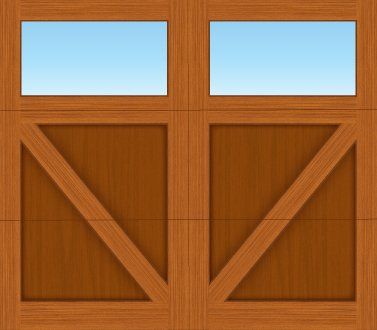

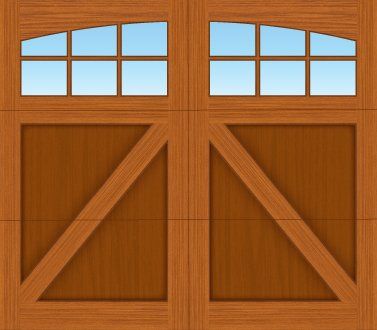

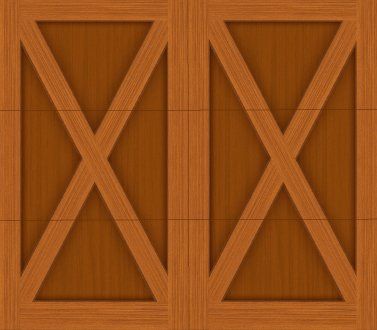

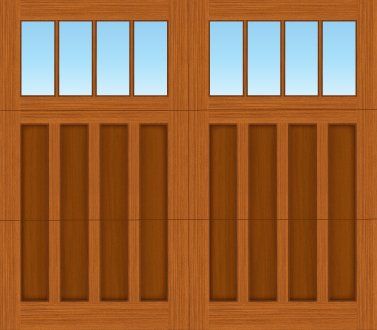

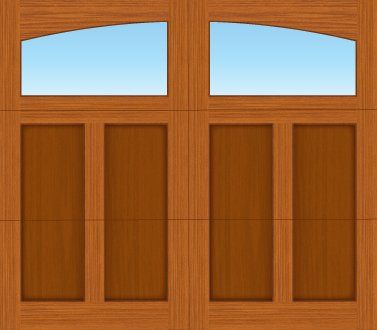

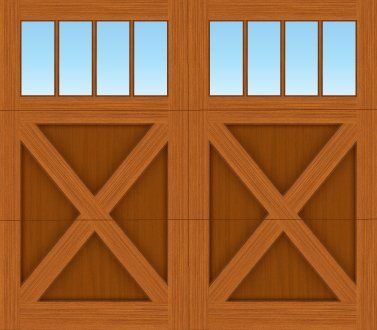

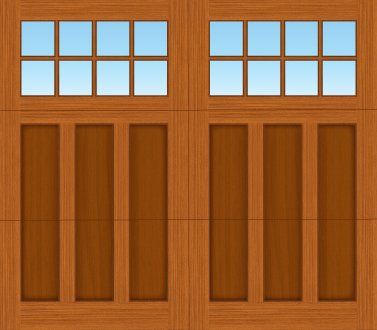

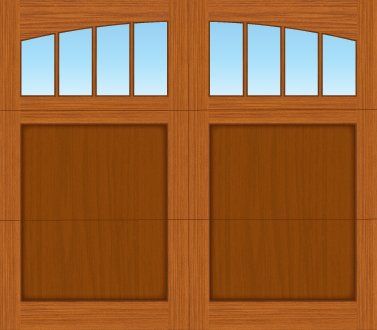

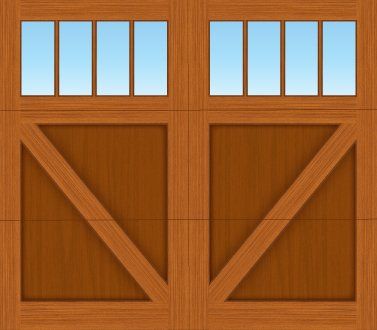

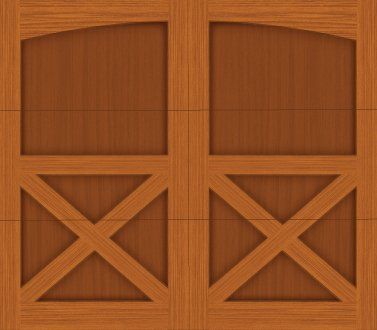

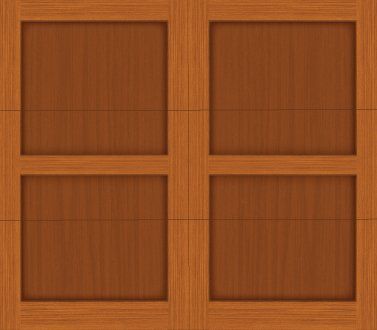

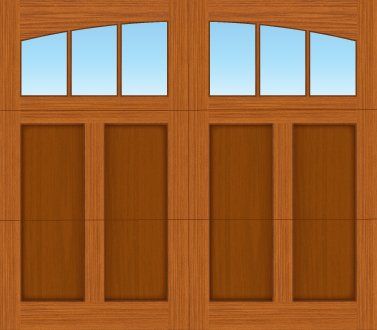

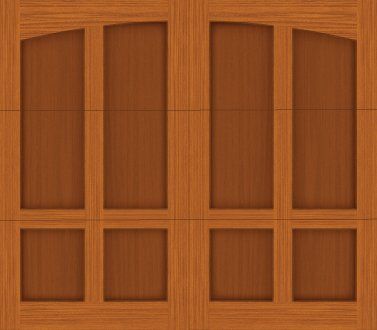

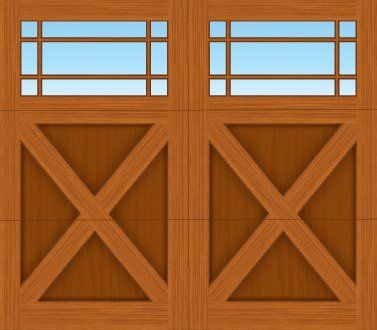

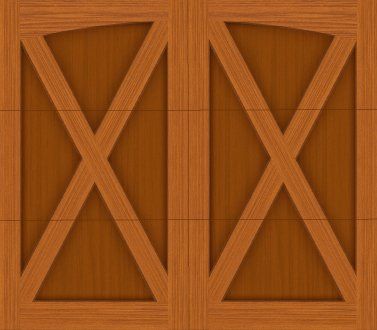

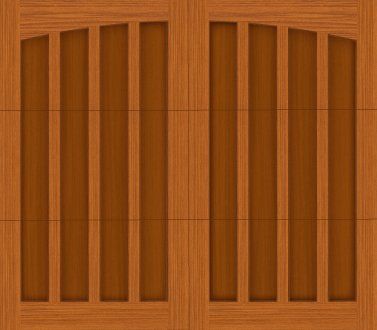

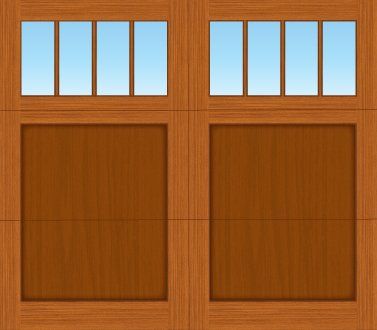

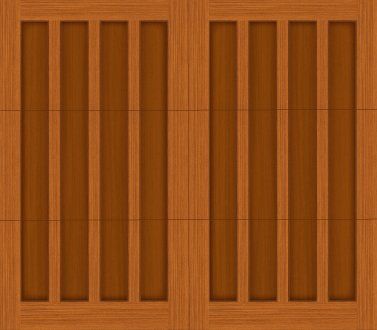

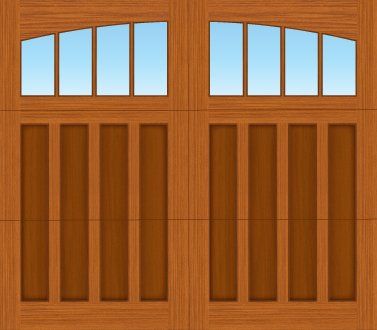

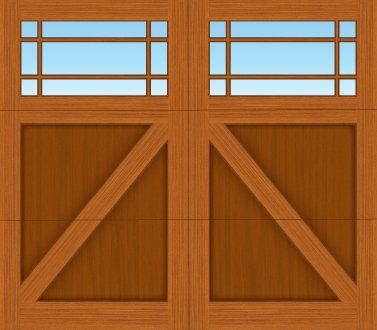

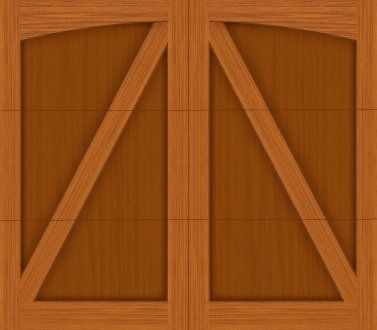

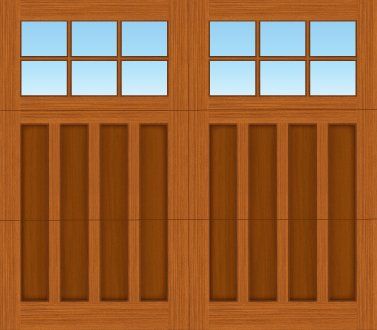

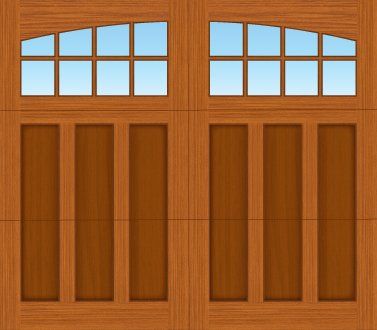

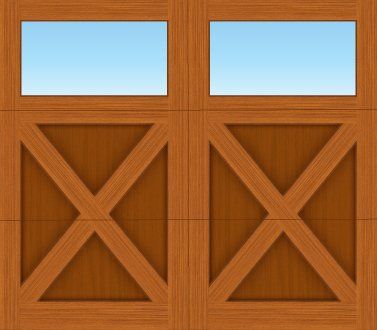

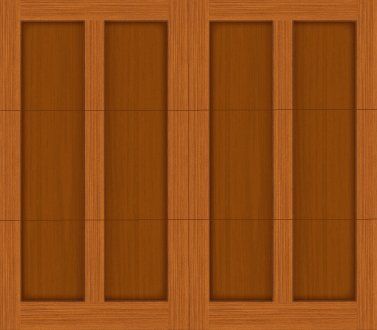

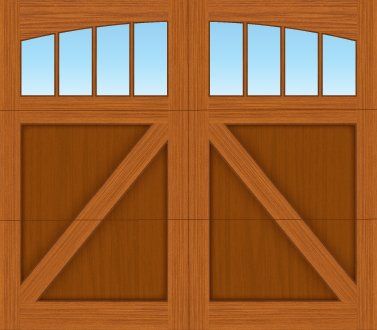

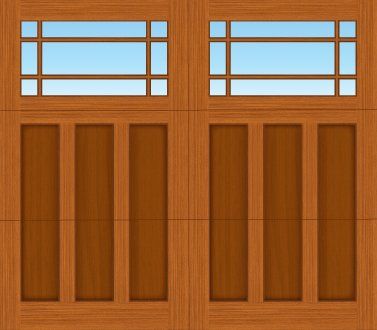

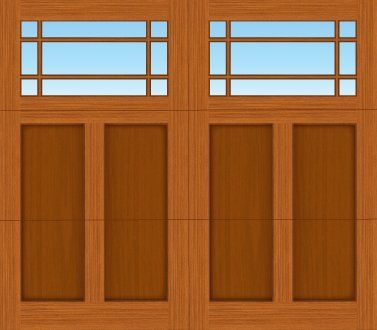

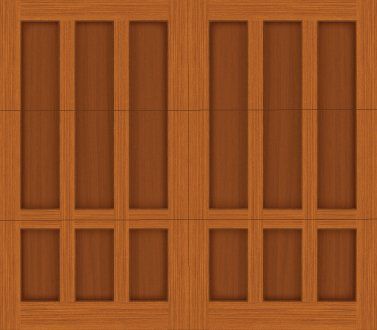

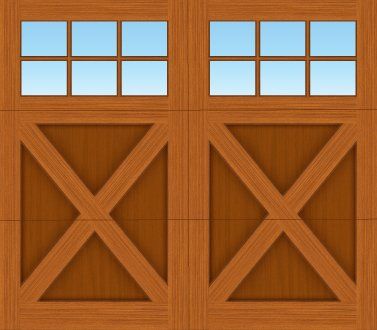

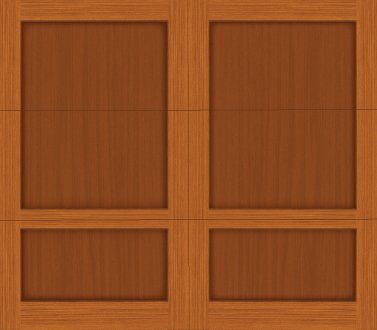

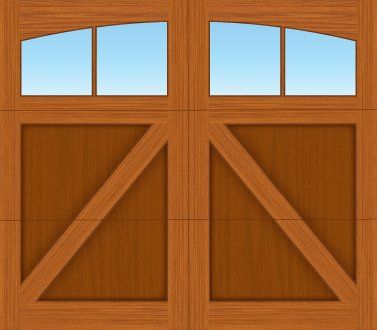

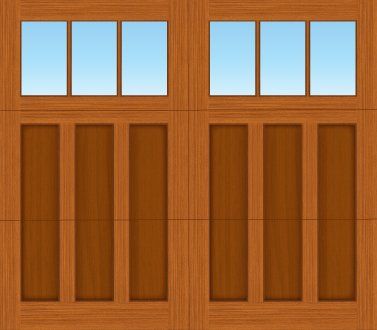

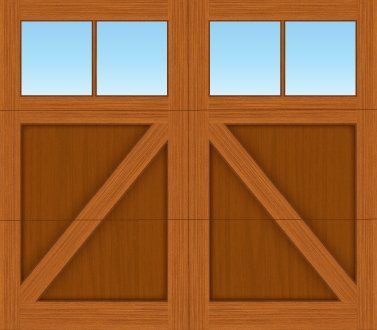

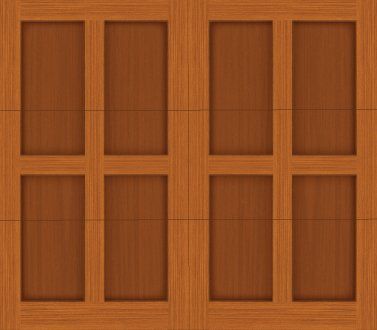

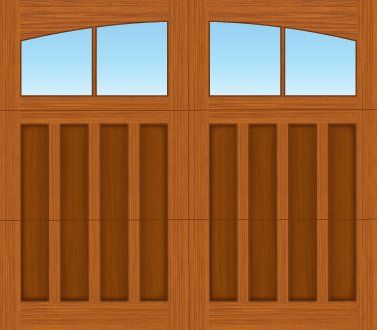

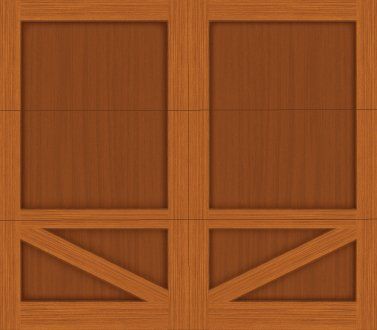

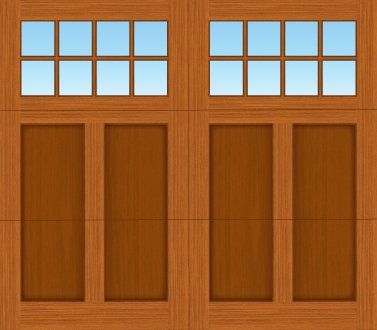

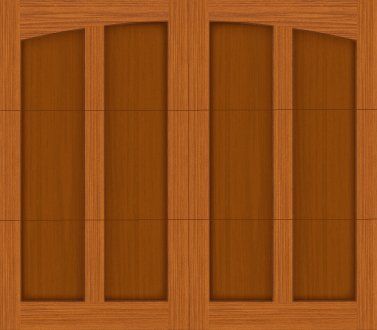

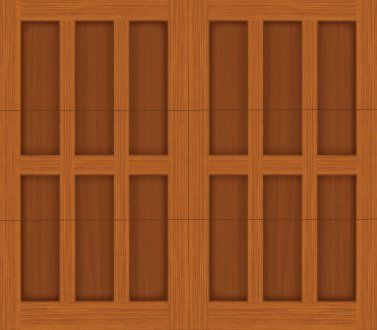

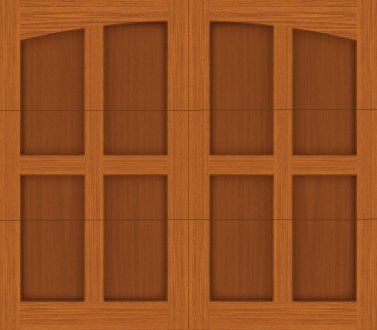

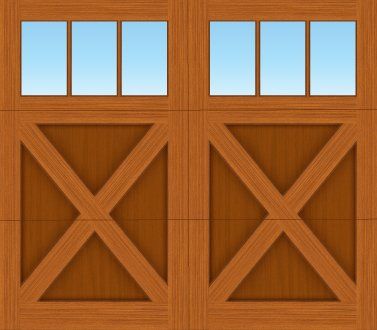

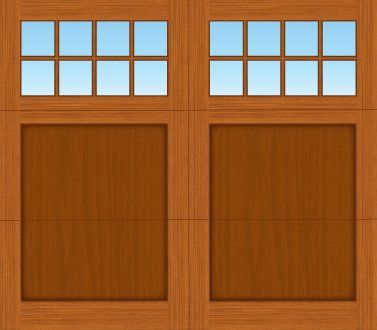

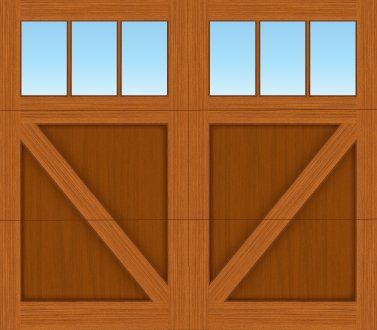

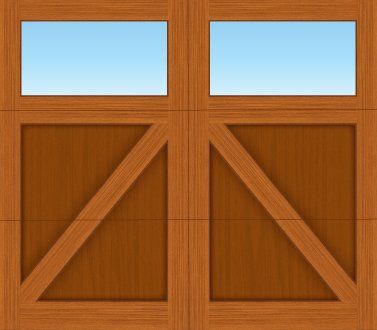

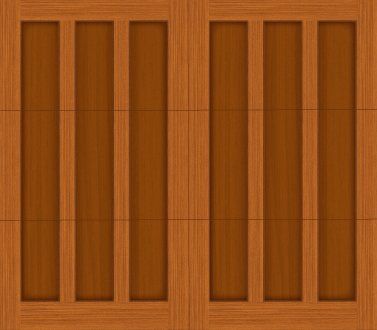

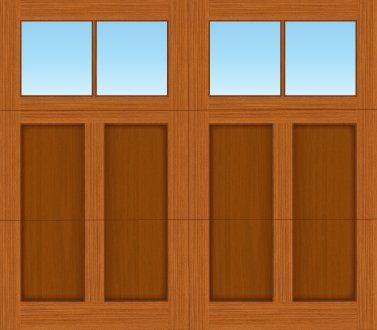

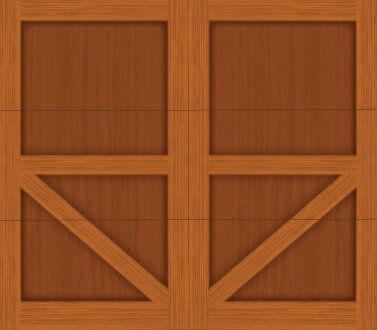

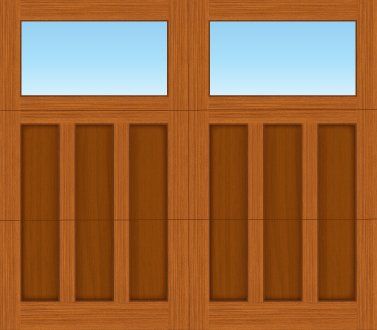

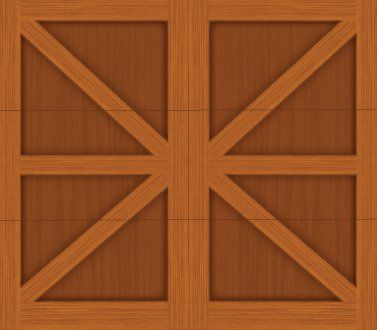

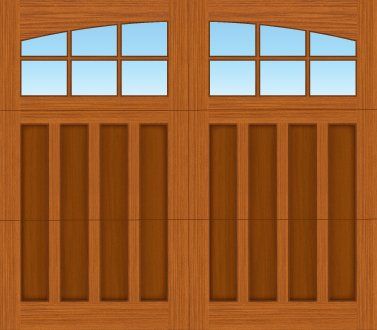

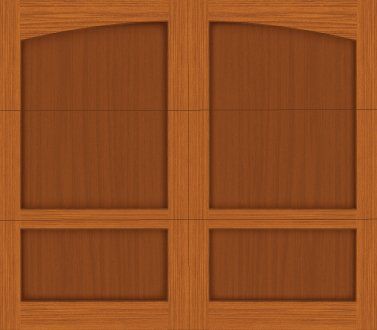

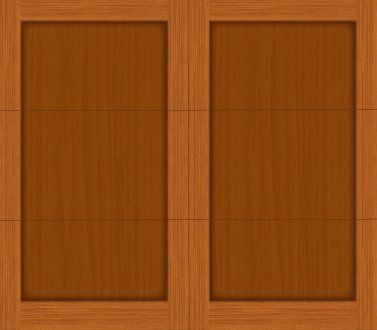

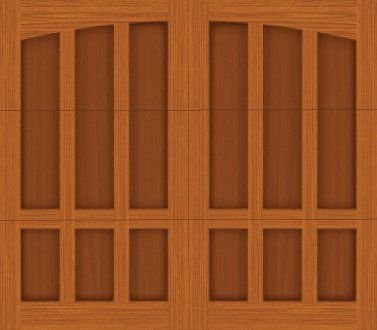

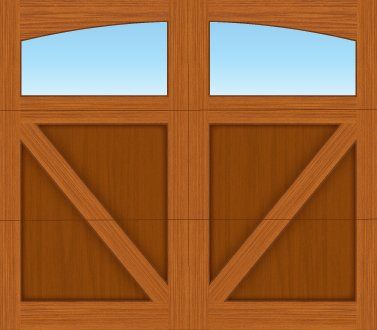

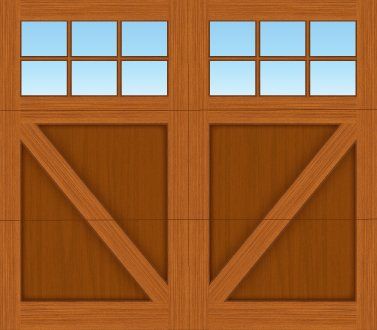

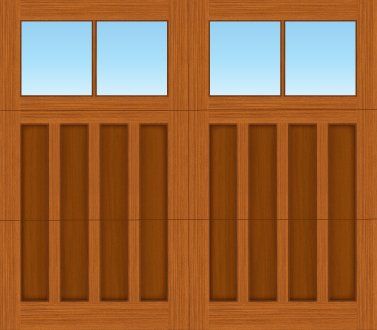

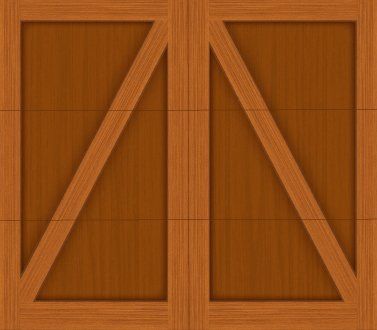

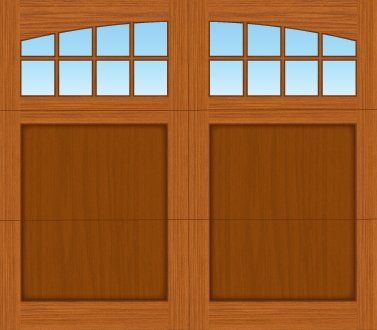

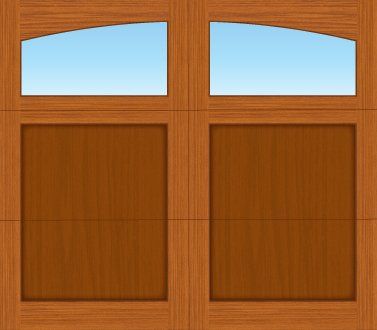

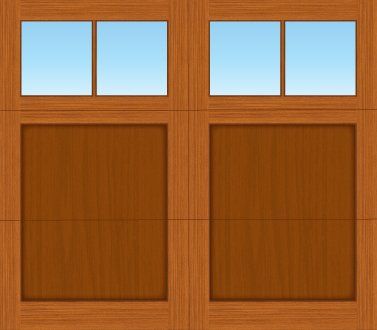

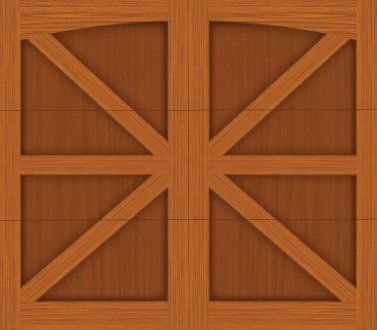

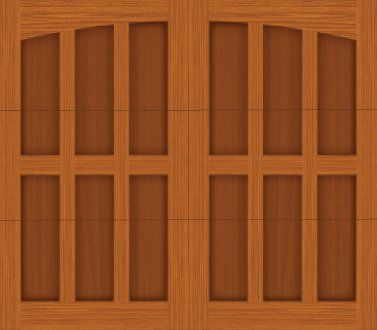

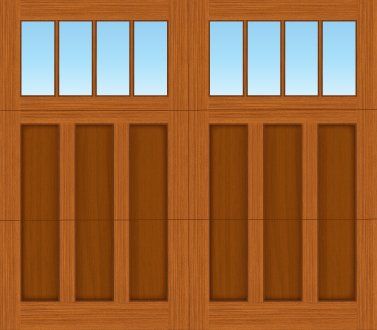

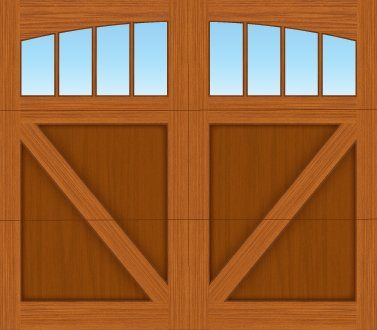

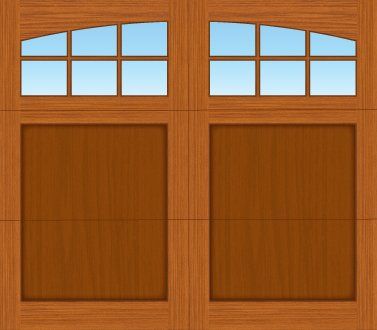

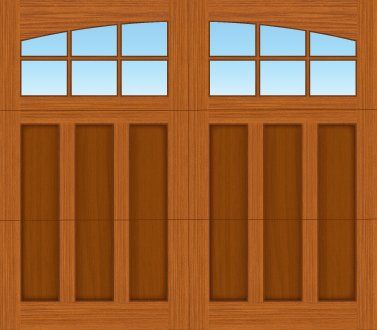

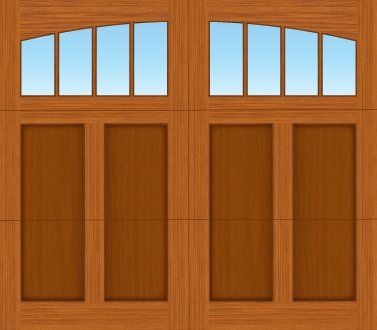

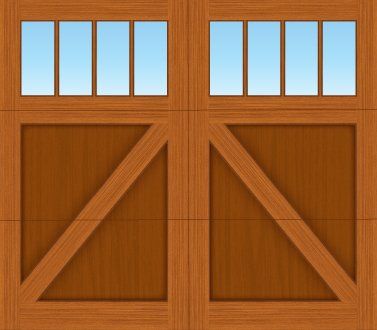

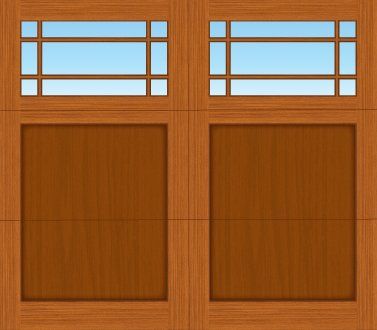

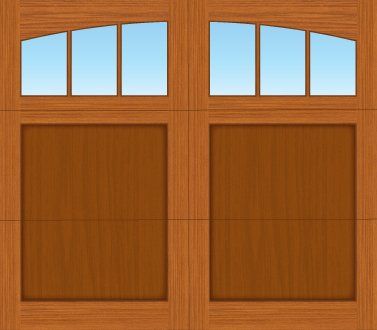

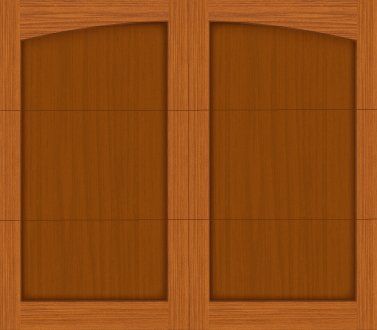

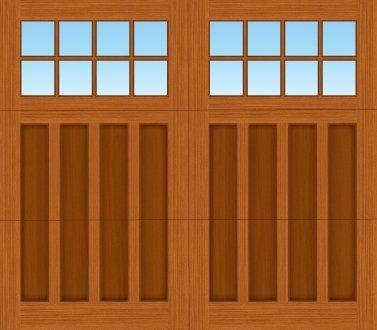

Design Gallery
Additional Options
Extended Life
25,000 Cycle Torsion Springs
Heavy Gauge Hinges
Heavy Duty Cables
OTHER OPTIONS
Prime Paint
Deco Kit B
Single Pane and Insulated Glass Options
Low Clearance, High Lift, or Vertical Lift Hardware
White Nylon Ball Bearing Rollers
Angle Mounted Track
Double End Hinges and Long Stem Rollers
25,000, 50,000 and 100,000 Cycle Torsion Springs
